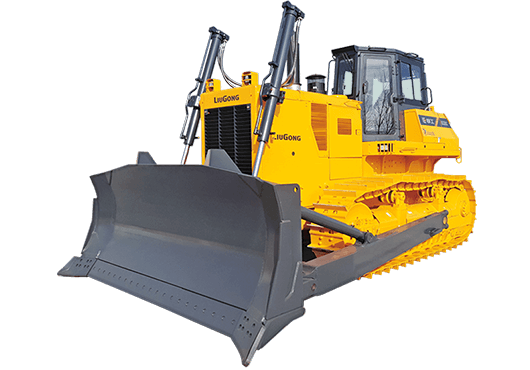

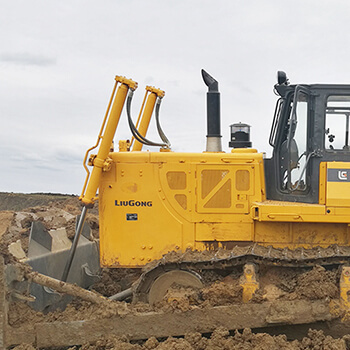

  • B320C bull dozer is powered by Cummins engine with a rated power output of 257 kW.
  • Load sensing hydraulics delivers high drawbar pull forces with precise control delivering power to where the operator really needs it.
  • The front arrangement of the working cylinder improves the load- carrying performance, delivering more uniform and safe load- carrying from the frame and front hood.
  • Maintenance speed and access is further improved with automatic greasing system and auto track tensioning fitted as option.

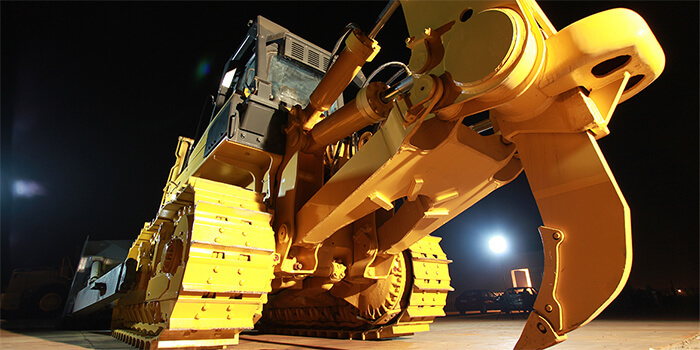

  • Adjustment of the ripper becomes easier because the rack position can be adjusted in the cab.
  • 320C
  • 320C
  • 320C

Description

Operating weight 34015 kg
Engine power 257 kW (345 hp) @ 2000 rpm
Max travel speed, fwd 11.8 km/h
Max travel speed, rev 13.7 km/h
No. of speeds, fwd 3
No. of speeds, rev 3
Referenced Shoe width 560 mm
Ground pressure 94 kPa
Blade type Straight
Blade capacity 10.4 m³
Depth below ground 560 mm
Lift above ground 1380 mm
Blade angle 14 °
Blade tilt 1000 mm
Transport length 6590 mm
Transport width 4130 mm
Transport height 3910 mm
Model Cummins
Emission Stage II / Stage III
Ripper options Single-shank ripper;Three-shank ripper
Blade options Straight; Semi-U blade
