6630E

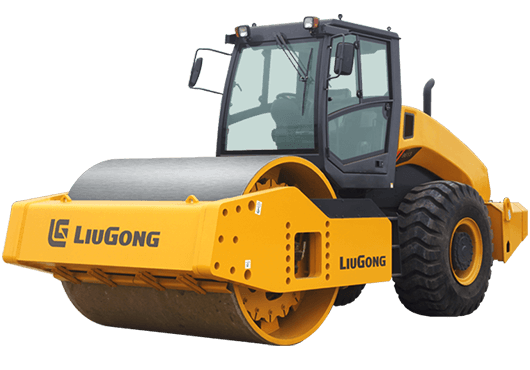

The Liugong 6630E fully hydraulic single steel wheel roller is mainly suitable for compacting the ground, and is suitable for compacting operations on gravel, sandy soil, glacial till soil, blasting rock, and cohesive soil. It is also suitable for compacting foundation materials such as concrete and stabilized soil in various large-scale projects. With its high reliability and large excitation force design, it is widely used in the construction of high-grade highways, airports, ports, dams, and industrial construction sites.
  • 6630E

Description

Operating Mass 10,300 kg
Mass On Front Drum 18,600 kg
Mass On Rear Axle 11,400 kg
Front Drum Static Linear Load 845 N/cm
Rear Drum Static Linear Load 286 N/cm
Model Shangchai SC9DK240G3
Emission Regulation CN Ⅲ
Rated Power 177 kW (241hp) @ 2200 rpm
Vibration Frequency 28/32 Hz
Nominal Amplitude 2.1/1.2 mm
Centrifugal Force 520/400 kN
Drum Diameter 1700 mm
1st Maximum Speed, fwd 4.1 km/h
2nd Maximum Speed, fwd 5.6 km/h
3rd Maximum Speed, fwd 6.2 km/h
4th Maximum Speed, fwd 10.4 km/h
Theoretical Gradeability 45%
Min. Ground Clearance 500 mm
Wheelbase 3250 mm
Min. Outside Turning Radius 7000 mm
Overall Length 6680 mm
Overall Height 3150 mm
Overall Width 2580 mm
