6633E

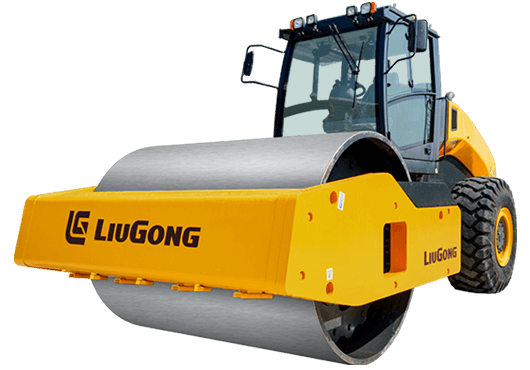

The Liugong 6633E fully hydraulic single steel wheel roller is mainly suitable for compacting the ground, and is suitable for compacting operations on gravel, sandy soil, glacial till soil, blasting rock, and cohesive soil. It is also suitable for compacting foundation materials such as concrete and stabilized soil in various large-scale projects. With its high reliability and large excitation force design, it is widely used in the construction of high-grade highways, airports, ports, dams, and industrial construction sites.

  • 6633E

Description

Operating Mass 33,000 kg
Mass On Front Drum 22,000 kg
Mass On Rear Axle 11,000 kg
Front Drum Static Linear Load 932 N/cm
Model WeiChai WP12G375E350
Emission Regulation CN Ⅲ
Rated Power 276 kW ( 370 hp) @ 2200 rpm
Vibration Frequency 28/30 Hz
Nominal Amplitude 2.3/1.5 mm
Centrifugal Force 725/540 kN
Drum Diameter 1800 mm
1st Maximum Speed, fwd 4.5 km/h
2nd Maximum Speed, fwd 6 km/h
3rd Maximum Speed, fwd 7 km/h
4th Maximum Speed, fwd 10 km/h
Theoretical Gradeability 45%
Min. Ground Clearance 520 mm
Wheelbase 3700 mm
Min. Outside Turning Radius 7000 mm
Overall Length 7000 mm
Overall Height 2600 mm
Overall Width 3300 mm
