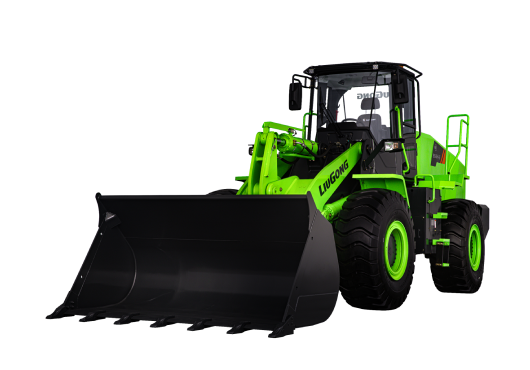

856HE

  • World-leading, high-performance lithium iron phosphate battery;Electric transmission improves transmission efficiency, reduces noise for smooth shifting and operative comfort;
  • Fully electric fixed & variable hydraulics deliver better efficiency and reduce energy consumption;
  • Intelligent energy recovery system re-charges the battery to minimize energy consumption;
  • Temperature-controlled electric fan has independent control for better energy efficiency;IP67-rated wiring harness, integrated battery is safe and reliable.
  • 856HE
  • 856HE
  • 856HE
  • 856HE
  • 856HE

Description

856HE (350kWh-Dry)
Rated Storage Energy 350 kWh
Rated Load Capacity 5,800 kg
Operating Weight 19,400 kg
Standard Bucket Capacity 3.5 m³
Bucket Breakout Force 162 kN
Standard Dump Clearance 2,977 mm
Shipping Dimension L*W*H 8615*2976*3500 mm
Tipping Load - Straight 16,400 kg
Tipping Load - Full Turn 14,480 kg
Fastest Total Cycle Time 9.0 s

856HE (350kWh-Wet)
Rated Storage Energy 350 kWh
Rated Load Capacity 5,800 kg
Operating Weight 19,840 kg
Standard Bucket Capacity 3.5 m³
Bucket Breakout Force 185 kN
Standard Dump Clearance 2,977 mm
Shipping Dimension L*W*H 8621*2976*3500 mm
Tipping Load - Straight 16,400 kg
Tipping Load - Full Turn 14,480 kg
Fastest Total Cycle Time 9.0 s

856HE (423kWh-Wet)
Rated Storage Energy 423 kWh
Rated Load Capacity 5,800 kg
Operating Weight 22,280 kg
Standard Bucket Capacity 3.5 m³
Bucket Breakout Force 187 kN
Standard Dump Clearance 2,977 mm
Shipping Dimension L*W*H 8665*2970*3500 mm
Tipping Load - Straight 17,800 kg
Tipping Load - Full Turn 15,600 kg
Fastest Total Cycle Time 9.0 s
