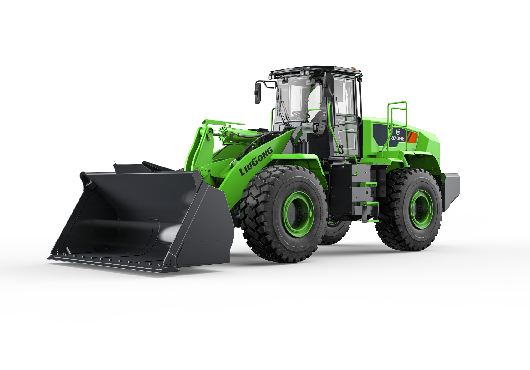

870HE

  • The largest tonnage pure electric loader with the longest application time in the industry.
  • With LiuGong 's unique machine matching technology, it can ensure that the mechanical performance can be adapted to all kinds of harsh working conditions and bring more efficient benefits to customers.
  • 870HE

Description

Rated Storage Energy 423 kWh
Rated Load Capacity 7,500 kg
Operating Weight 24,640 kg
Standard Bucket Capacity 4.7 m³
Bucket Breakout Force 221 kN
Standard Dump Clearance 3,101 mm
Shipping Dimension L*W*H 9145*3210*3550 mm
Tipping Load - Straight 19,000 kg
Tipping Load - Full Turn 16,800 kg
Fastest Total Cycle Time 9.5 s
