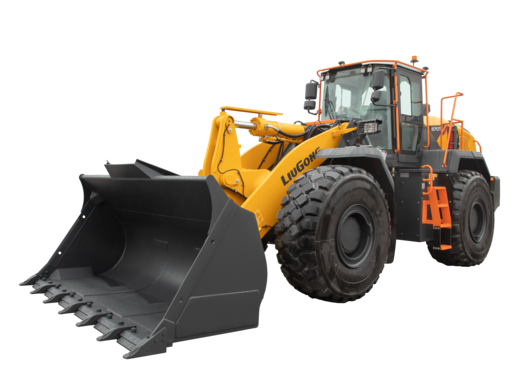

870T

Customized engine is perfectly matched power-train  for high efficiency and low fuel consumption.
Programmable hydraulic control suitable for different applications and operating styles.
Z-bar linkage with high pressure hydraulics for increased breakout force.
Newly-designed bucket enhances material retention and improves productivity.
The new cab of T-series, incorporating  enlarged driving space, increased legroom and wider front visibility, featuring with electric heating air suspension and ventilation seat, offers the operator a comfortable and safe driving experience.
  • 870T

Description

Operating Weight 24,300 kg
Standard Bucket Size 4.2 m³
Gross Power 210 kW (282 hp / 286 ps) @ 2,100 rpm
Net Power 199 kW (267 hp / 271 ps) @ 2,100 rpm
Hydraulic Cycle Time 10.6 s
Raise Time 5.8 s
Maximum Travel Speed, fwd 38 km/h
Tipping Load - Full Turn 16,120 kg
Bucket Breakout Force 186 kN
Dump Clearance at Full Height Discharge 3,249 mm
Dump Reach at Full Height Discharge 1,175 mm
Model Cummins L9
Emissions EU Stage V
Aspiration Turbocharged & Air-to-air intercooled
Length with Bucket Down 9,142 mm
Width over Tires 2,980 mm
Cab Height 3,460 mm
Turning Radius, Outside of Tire 6,795 mm
Bucket Capacities 3.0-7.0 m³
General Purpose 4.2 m³
Light Material 5.8, 7.2 m³
Heavy Rock 3.3, 4.0 m³
