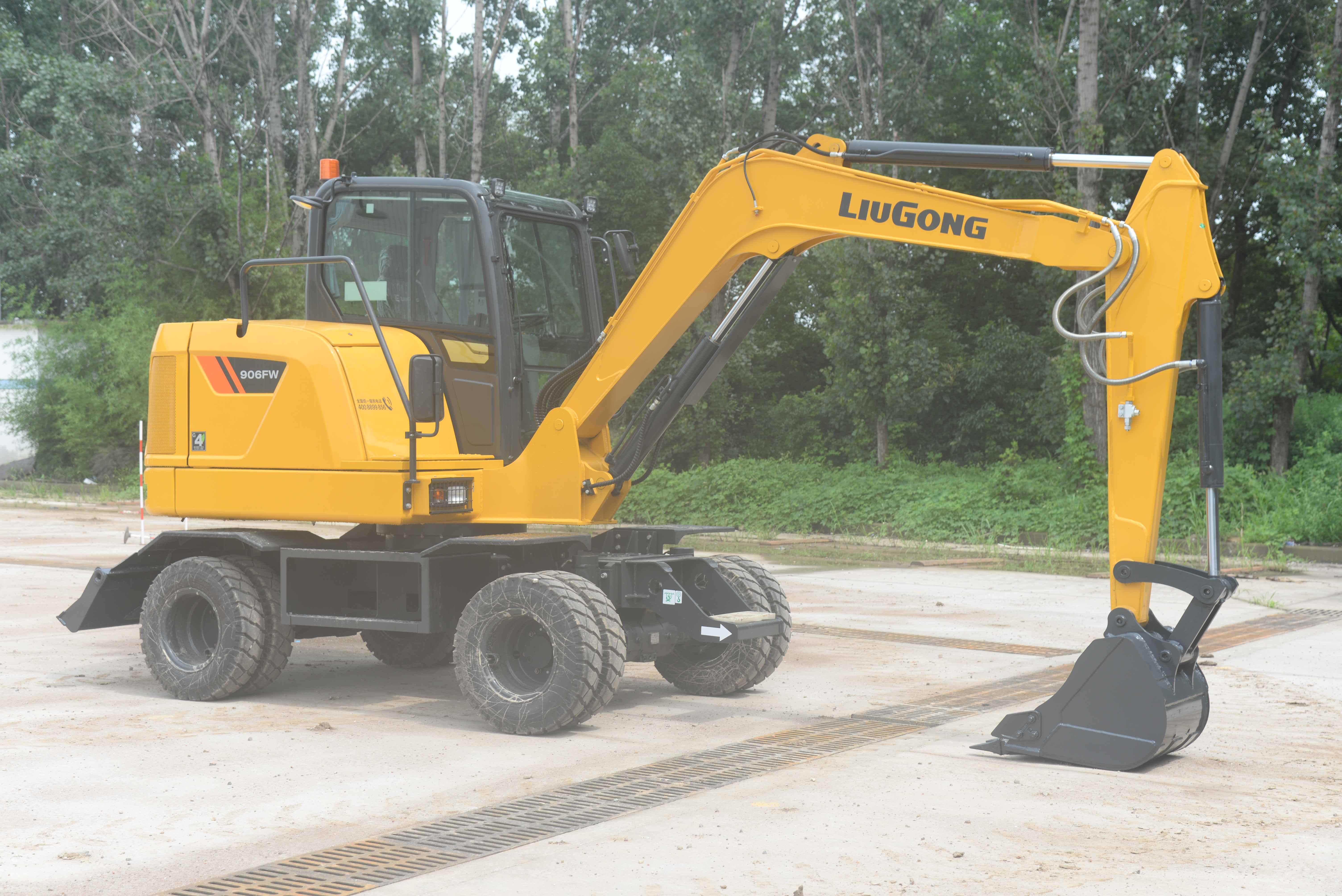

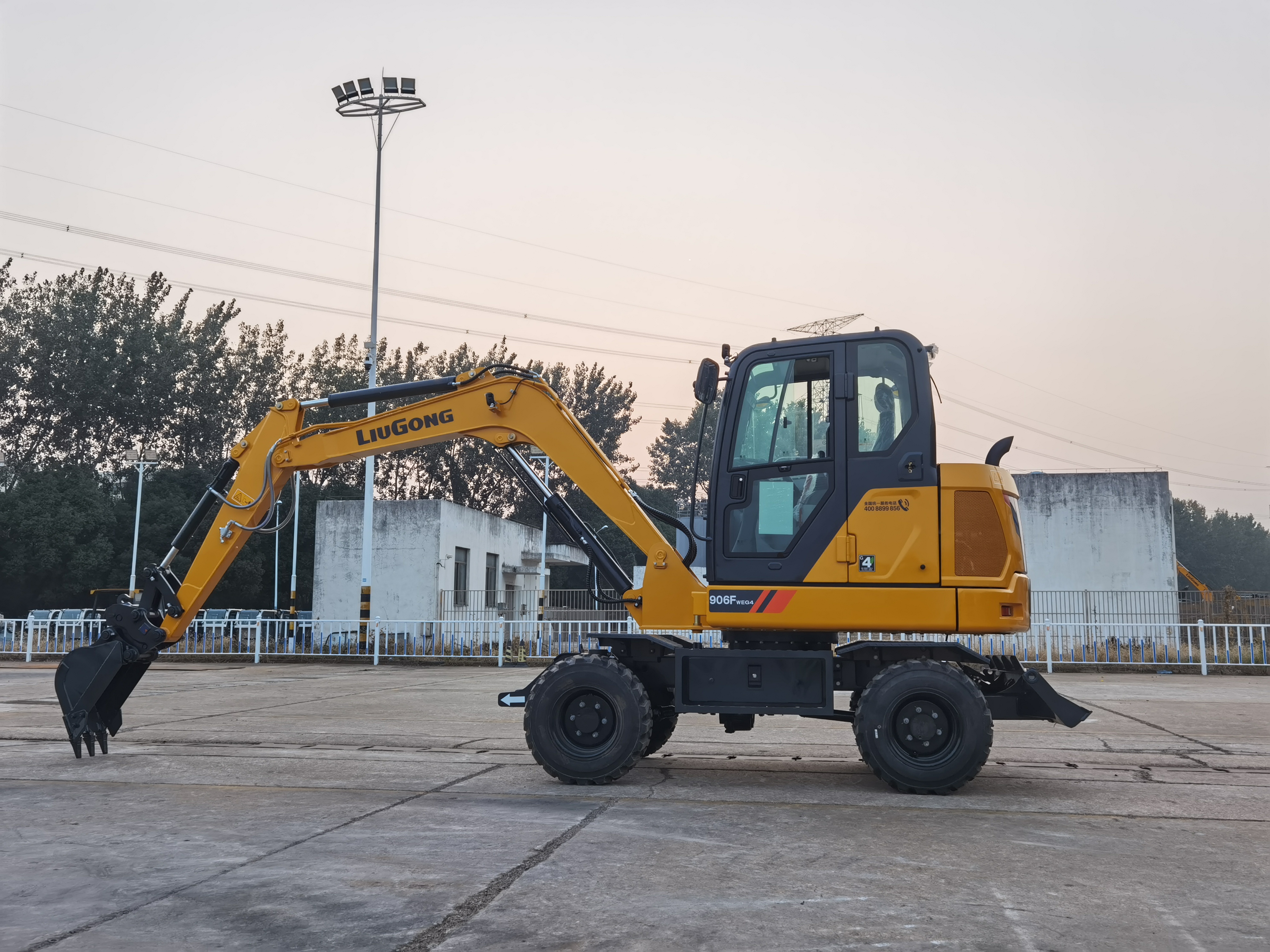

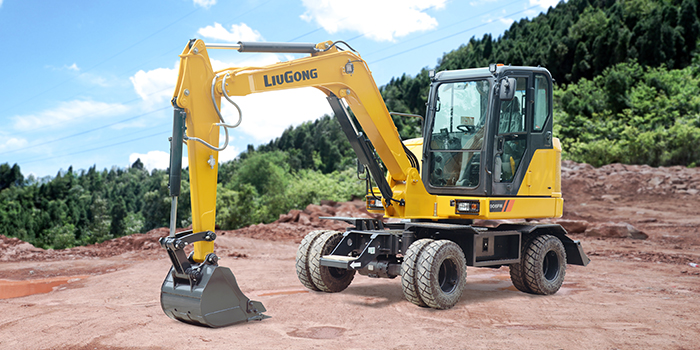

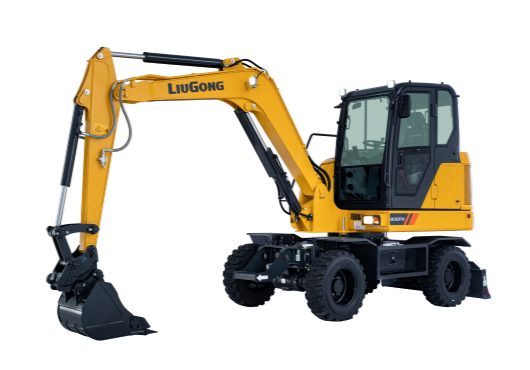

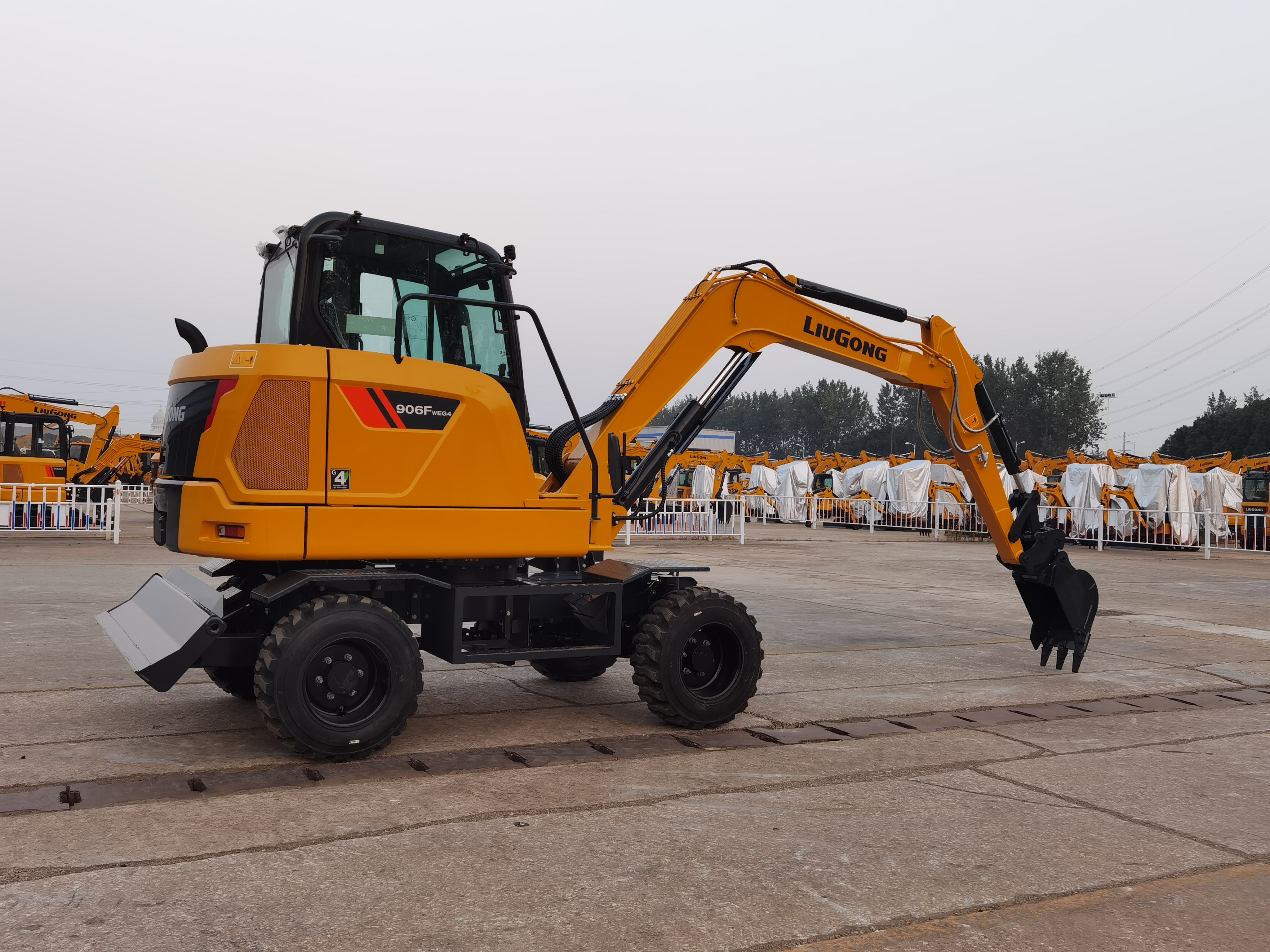

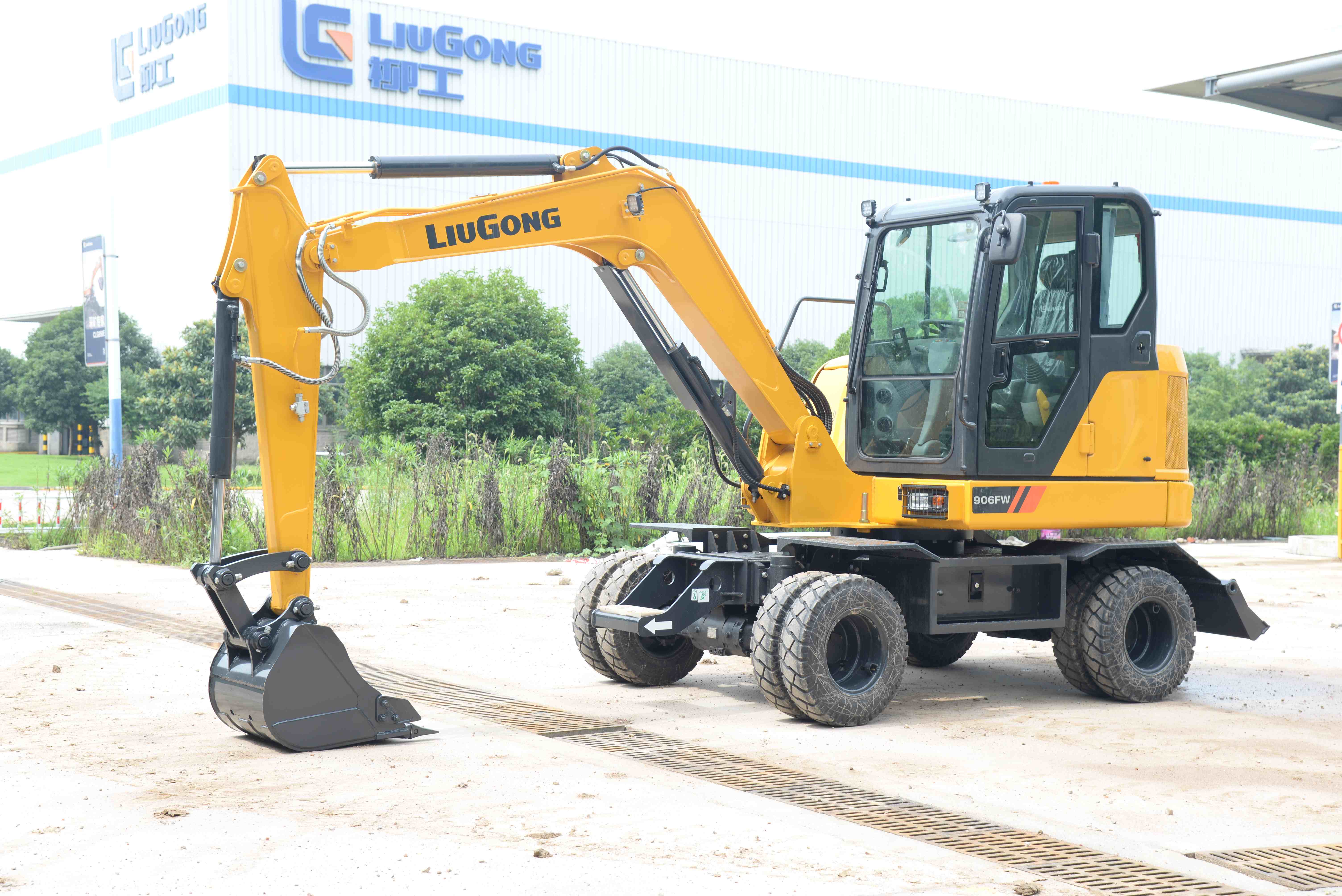

The 906FW wheeled excavator is an advanced hydraulic transmission wheeled excavator designed for municipal applications. It offers reliable machine quality, fuel efficiency, and comfortable operation, providing customers with a better driving experience.
| Operating weight | 5,880 kg |
| Engine power | 46.2 kW (62.0 hp / 62.8 ps) @ 2,200 rpm |
| Std. Bucket capacity | 0.18 m³ |
| Travel speed(High) | 27 km/h |
| Maximum swing speed | 9.3 rpm |
| Arm breakout force | 31 kN |
| Bucket breakout force | 41 kN |
| Shipping length | 5900 mm |
| Shipping width | 1905 mm |
| Shipping height | 2880 mm |
| Boom | 3000 mm |
| Arm | 1600 mm |
| Digging reach | 6150 mm |
| Digging reach on ground | 5891 mm |
| Digging depth | 3850 mm |
| Vertical wall digging depth | 3406 mm |
| Cutting height | 5950 mm |
| Dumping height | 4400 mm |
| Minimum front swing radius | 2450 mm |
| Depth Below Ground | 180 mm |
| Lift Above Ground | 510 mm |
| Model | Yanmar 4TNV98 |
| Emission | CN III |
| System maximum flow | 168 L/min |
| System pressure | 25 MPa |
