| Operating weight | 8700 kg |
| Engine power | 46.2 kW (62.0 hp) @ 2200 rpm |
| Std. Bucket capacity | 0.28 m³ |
| Travel speed(High) | 4.8 km/h |
| Travel speed(Low) | 2.8 km/h |
| Maximum swing speed | 10.5 rpm |
| Arm breakout force | 37 kN |
| Bucket breakout force |
63 kN
|
|
Shipping length
|
6200 mm
|
|
Shipping width
|
2200 mm
|
|
Shipping height
|
2710 mm
|
|
Track shoe width (std)
|
450 mm
|
|
Boom
|
3375 mm
|
|
Arm
|
2100 mm
|
|
Digging reach
|
7264 mm
|
|
Digging reach on ground
|
7082 mm
|
|
Digging depth
|
4540 mm
|
|
Vertical wall digging depth
|
3963 mm
|
|
Cutting height
|
6525 mm
|
|
Dumping height
|
4577 mm
|
|
Tail swing radius
|
1410 mm
|
|

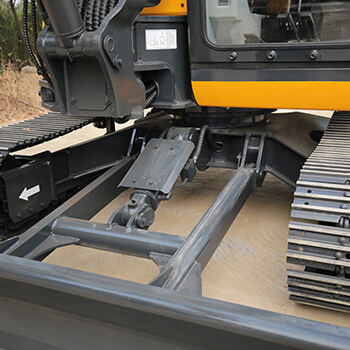

Dozer-up
|
510 mm
|
|
Dozer-down
|
470 mm
|
|
Swing boom left rotation
|
65 °
|
|
Swing boom right rotation
|
55 °
|
|

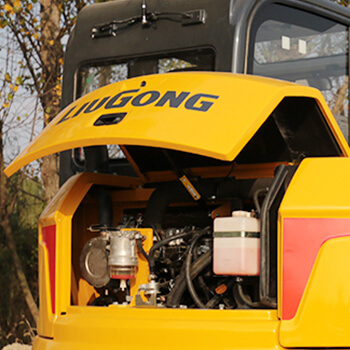

Model
|
Yanmar 4TNV98C-SLY
|
|
Emission
|
EU Stage V / EPA Tier 4F
|
|
System maximum flow
|
209 L/min ( 55 gal/min)
|
|
System pressure
|
29 MPa
|
| Operating weight | 8,400-10,100 kg |
| Engine power |
46.2 kW (62.0 hp) @ 2200 rpm
|
|
Std. Bucket capacity
|
0.28 m³
|
|
Travel speed(High)
|
4.5 km/h
|
|
Travel speed(Low)
|
2.4 km/h
|
|
Maximum swing speed
|
10.5 rpm
|
|
Arm breakout force
|
37 kN
|
|
Bucket breakout force
|
63 kN
|
|
Shipping length
|
6200 mm
|
|
Shipping width
|
2200 mm
|
|
Shipping height
|
2710 mm
|
|
Track shoe width (std)
|
450 mm
|
|
Boom
|
2100+2011 mm
|
|
Arm
|
2100 mm
|
|
Digging reach
|
7927 mm
|
|
Digging reach on ground
|
7763 mm
|
|
Digging depth
|
4299 mm
|
|
Vertical wall digging depth
|
3738 mm
|
|
Cutting height
|
8247 mm
|
|
Dumping height
|
6170 mm
|
|
Min. Front Swing Radius
|
2422 mm
|
|
Dozer-up
|
443 mm
|
|
Dozer-down
|
489 mm
|
|
Swing boom left rotation
|
65 °
|
|
Swing boom right rotation
|
55 °
|
|
Engine model
|
Yanmar 4TNV98C-SLY
|
|
Emission
|
EU Stage V
|
|
System maximum flow
|
209 L/min ( 55 gal/min)
|
|
System pressure
|
29 MPa
|
