| Operating weight | 14050 kg |
| Engine power | 86 kW (115 hp/117 ps) @ 2200 rpm |
| Std. Bucket capacity | 0.6 m³ |
| Travel speed(High) | 5.1 km/h |
| Travel speed(Low) | 3.3 km/h |
| Maximum swing speed | 12.94 rpm |
| Arm breakout force | 64.9 kN |
| Arm breakout force Power boost | 70 kN |
| Bucket breakout force | 89.8 kN |
| Bucket breakout force Power boost | 96.9 kN |
| Shipping length | 7750 mm |
| Shipping width | 2490 mm |
| Shipping height | 2930 mm |
| Track shoe width (std) | 500 mm |
| Boom | 4600 mm |
| Arm | 2500 mm |
| Digging reach | 8300 mm |
| Digging reach on ground | 8170 mm |
| Digging depth | 5470 mm |
| Vertical wall digging depth | 4770 mm |
| Cutting height | 8760 mm |
| Dumping height | 6310 mm |
| Minimum front swing radius | 2470 mm |

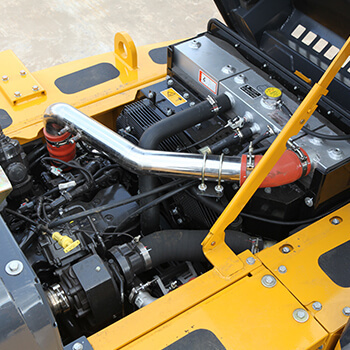

| Model | Cummins QSF 3.8 |
| Emission | Stage IIIA |
| System maximum flow | 2x120 L/min (2x32 gal/min) |
| System pressure | 34.3 MPa |
