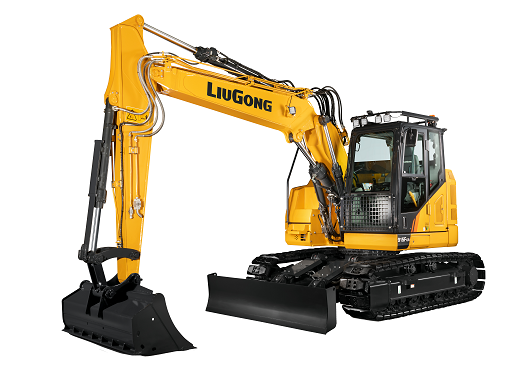

915FCR

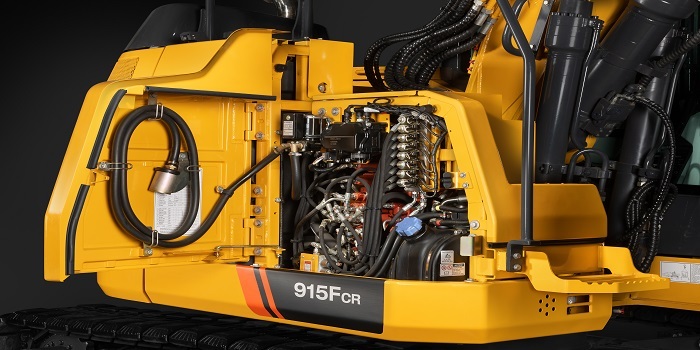

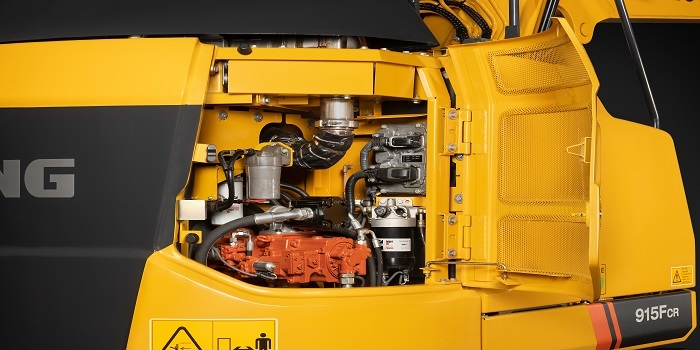

Cummins ' latest generation Euro V engine has better fuel economy
• The low-speed and high-torque engine is matched with a large-displacement main pump and a large-torque swing motor to ensure the performance of the machine while improving fuel economy
• The engine meets European EU StageV and North American EPA Tier4(f) emission regulations.
• For the first time, the Cummins engine adopts a global design without EGR, which reduces fuel consumption to a minimum while meeting the emission requirements of almost all regions of the world.
  • 915FCR
  • 915FCR
  • 915FCR
  • 915FCR
  • 915FCR

Description

Operating weight 15700-17500 kg
Engine power 90 kW @ 2200 rpm
Std. Bucket capacity 0.55 m³
Travel speed(High) 4.9 km/h
Travel speed(Low) 2.9 km/h
Maximum swing speed 11.3 rpm
Arm breakout force 70 kN
Bucket breakout force 96.9 kN
Shipping length 7335 mm
Shipping width 2490 mm
Shipping height 3050 mm
Track shoe width (std) 500 mm
Boom 4600 mm
Arm 2500 mm
Digging reach 8365 mm
Digging reach on ground 8240 mm
Digging depth 5540 mm
Vertical wall digging depth 5055 mm
Cutting height 9015 mm
Dumping height 6485 mm
Minimum front swing radius 2325 mm
Dozer-up 540 mm
Dozer-down 540 mm
Model Cummins F3.8
Emission Stage V / Tier4F
System maximum flow 2x117 L/min
System pressure 34.3 MPa
