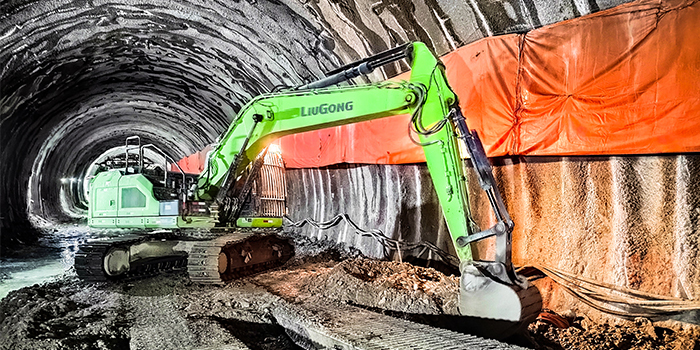

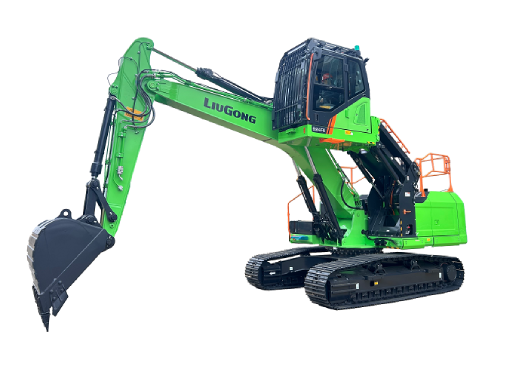

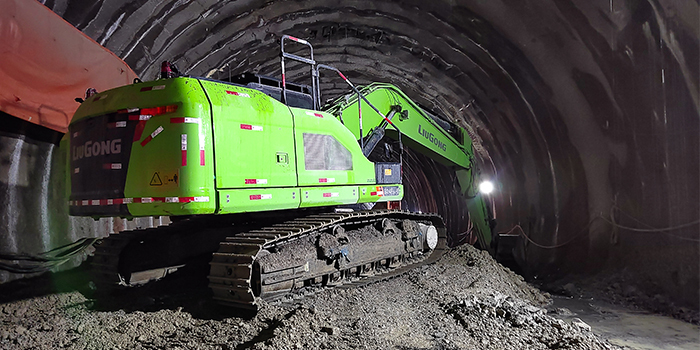

The 924FE electric excavator is a special tunnel electric excavator launched by Liugong on the new generation of electric excavator technology platform, combined with the particularness of tunnel construction, such as many rocks, high strength, diverse construction, environmental hazards, low oxygen content, and emission limits. The whole machine adopts full electronic control hydraulic system, internationally renowned three-power matching adjustment, new cockpit, comprehensive strengthening, comprehensive protection design, etc., to meet the tunnel construction of high strength, multi-operation, low emission, high comfort operation needs.
  • 924FE
  • 924FE
  • 924FE

Description

924FE
Operating Weight 24,900 kg
Rated Storage Capacity 423 kWh
Rated Power 165 kW
Standard Bucket Capacity 1 m³
Arm Digging Force 105 kN
Bucket Digging Force 165 kN
Drawbar Pull 200 kN
Max. Digging Reach 9,890 mm
Max. Dumping Height 7,020 mm
Shipping Dimension L*W*H 9910*3090*3428 mm

924FE (High-rise Cab)
Operating Weight 28,100 kg
Rated Storage Capacity 423 kWh
Rated Power 165 kW
Standard Bucket Capacity 1 m³
Arm Digging Force 105 kN
Bucket Digging Force 165 kN
Drawbar Pull 200 kN
Max. Cab Lifting Height 2.5 m
Max. Digging Reach 9,890 mm
Max. Dumping Height 7,020 mm
Shipping Dimension L*W*H 9910*3090*3428 mm

924FE (Tilting Cab)
Operating Weight 26,500 kg
Rated Storage Capacity 423 kWh
Rated Power 165 kW
Standard Bucket Capacity 1 m³
Arm Digging Force 105 kN
Bucket Digging Force 165 kN
Drawbar Pull 200 kN
Cab Tilt Angle 0 ~ 30°
Max. Digging Reach 9,890 mm
Max. Dumping Height 7,020 mm
Shipping Dimension L*W*H 9910*3090*3428 mm
