| Operating weight |
31,800-32,900 kg |
| Engine power |
169 kW (227 hp/230 ps) @ 2050 rpm |
| Bucket capacity |
1.6 m³ |
| Travel speed(High) |
5.5 km/h |
| Maximum travel speed (Low) |
3.0 km/h |
| Maximum swing speed |
10.3 rpm |
| Arm breakout force |
137 kN |
| Arm breakout force Power boost |
149 kN |
| Bucket breakout force |
187 kN |
| Bucket breakout force Power boost |
203 kN |
| Shipping length |
10650 mm |
| Shipping width |
3190 mm |
| Shipping height |
3525 mm |
| Track shoe width (std) |
600 mm |
| Boom |
6200 mm |
| Arm |
3050 mm |
| Digging reach |
10653 mm |
| Digging reach on ground |
10453 mm |
| Digging depth |
7300 mm |
| Vertical wall digging depth |
6216 mm |
| Cutting height |
10300 mm |
| Dumping height |
7265 mm |
| Minimum front swing radius |
4040 mm |

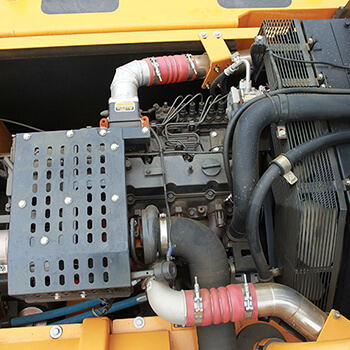

| Model |
Cummins QSB7 |
| Emission |
Stage IIIA |
| System maximum flow |
2×266 L/min (2x70 gal/min) |
| System pressure |
34.3 MPa |
|
