| Operating weight |
38800 kg |
| Engine power |
231 kW @ 2100 rpm |
| Std. Bucket capacity |
1.8 m³ |
| Travel speed(High) |
5.5 km/h |
| Maximum travel speed (Low) |
3.4 km/h |
| Maximum swing speed |
10 rpm |
| Arm breakout force |
196 kN |
| Bucket breakout force |
290 kN |
| Shipping length |
11300 mm |
| Shipping width |
3190 mm |
| Shipping height |
3800 mm |

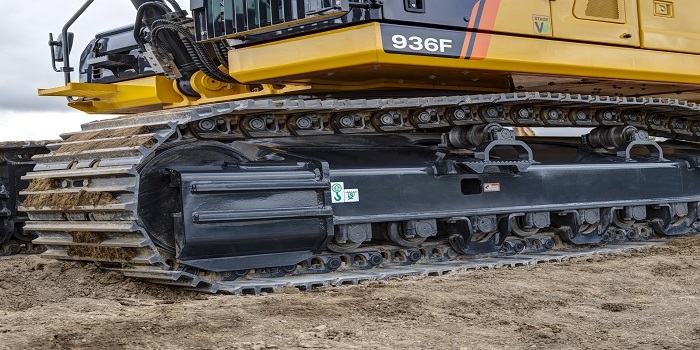

| Track shoe width (std) |
600 mm |
| Boom |
6400 mm |
| Arm |
3200 mm |
| Digging reach |
11100 mm |
| Digging reach on ground |
10900 mm |
| Digging depth |
7340 mm |
| Vertical wall digging depth |
6460 mm |
| Cutting height |
10240 mm |
| Dumping height |
7160 mm |
| Minimum front swing radius |
4465 mm |
| Model |
Cummins L9 |
| Emission |
Stage V / Tier 4F |
| System maximum flow |
2×351 L/min |
| System pressure |
34.3 MPa |
