| Operating weight | 1,790 - 1,870 kg |
|---|---|
| Maximum digging depth (short/long arm) | 2,528 - 2,727 mm |
| Maximum dump height (short/long arm) | 2,444 - 2,588 mm |
| Travel speed, low / high | 1.8 / 3.5 km/h |
| Breakout force | 12.9 kN |
| Tear out force (arm breakout force) (short/long arm) | 7.95 - 6.95 kN |
| Overall width | 995 - 1,352 mm |
| Overall length (short/long arm) | 3,431 - 3,309 mm |
| Main hydraulic pump max. flow | 34 l/min |
| Electric motor (peak) | 18 kW |
| Battery voltage | 48 V |
| Battery capacity | 16 kWh |
| Indicative runtime (depending on application) | Up to 5 hours |

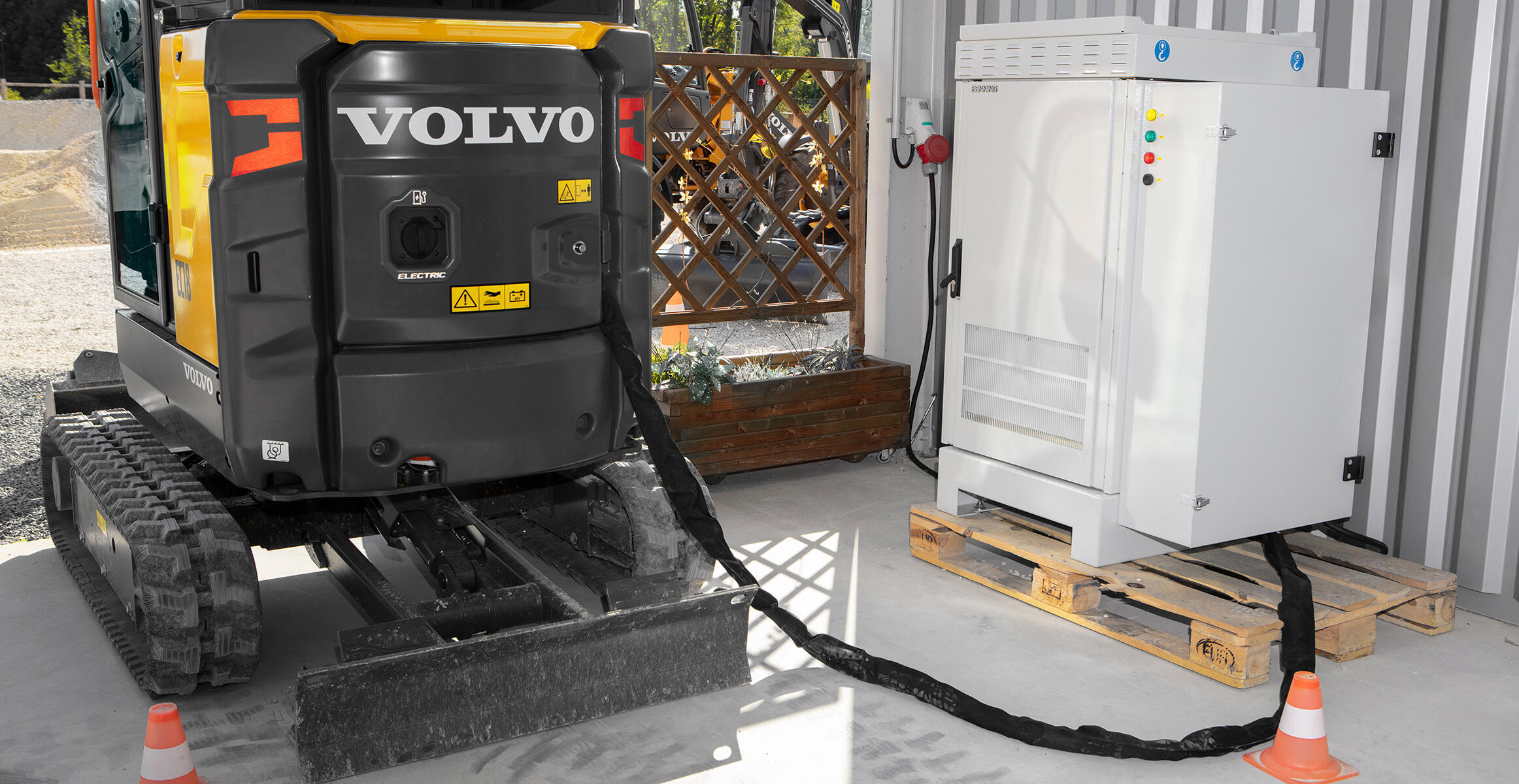

| On board charging time 230 VAC 16A | ~ 5 h |
| Off board charging time 400 VAC 32A | ~ 1 h |
