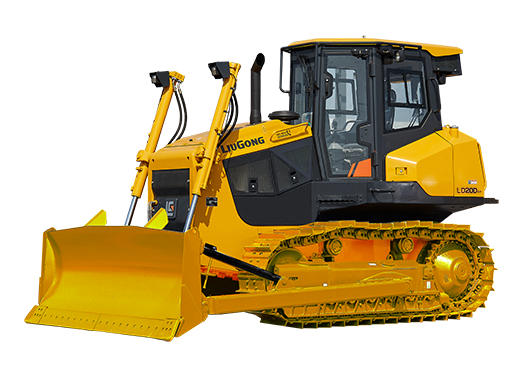

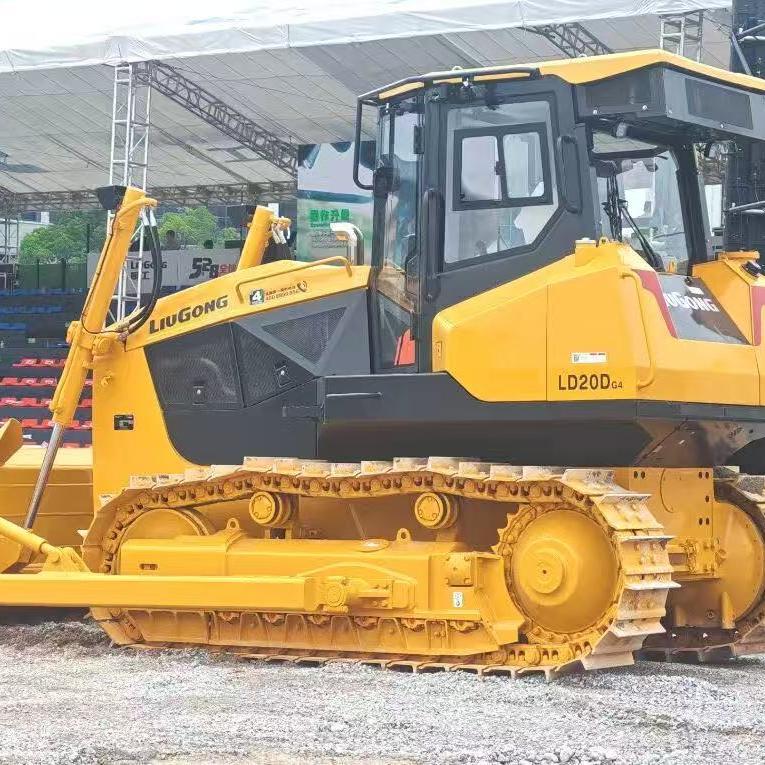

LD20D

  • The LD20D engine boasts a rated power of 154 kW, exceeding the industry standard by 10%, ensuring robust power output and optimal operational efficiency.
  • It is equipped with the luxurious cabin, integrating a high-capacity air conditioning system for enhanced comfort and featuring noise levels that are notably lower than industry averages.
  • Adopting a pivot-type chassis, the vehicle employs modularized powertrain components designed for prolonged service life and ease of maintenance, effortlessly tackling harsh working conditions.
  • Furthermore, it offers superior operational comfort and convenient maintenance procedures.
  • LD20D
  • LD20D

Description

Machine Weight 17500 kg
Rated Power 154 kW
Blade Capacity 4.5 m³
Blade Lift Height 1100 mm
Blade Cutting Depth 510 mm
Ground Pressure 55.8 kPa
Engine Displacement 8.9 L
Track Shoe Width 510 mm
Number of Rollers (Per Side) 6
Number of Idlers (Per Side) 2
Number of Track Shoes (Per Side) 39
1st Gear Speed (Forward) 3.6 km/h
2nd Gear Speed (Forward) 6.6 km/h
3rd Gear Speed (Forward) 10.6 km/h
1st Gear Speed (Reverse) 4.3 km/h
2nd Gear Speed (Reverse) 7.8 km/h
3rd Gear Speed (Reverse) 12.6km/h
