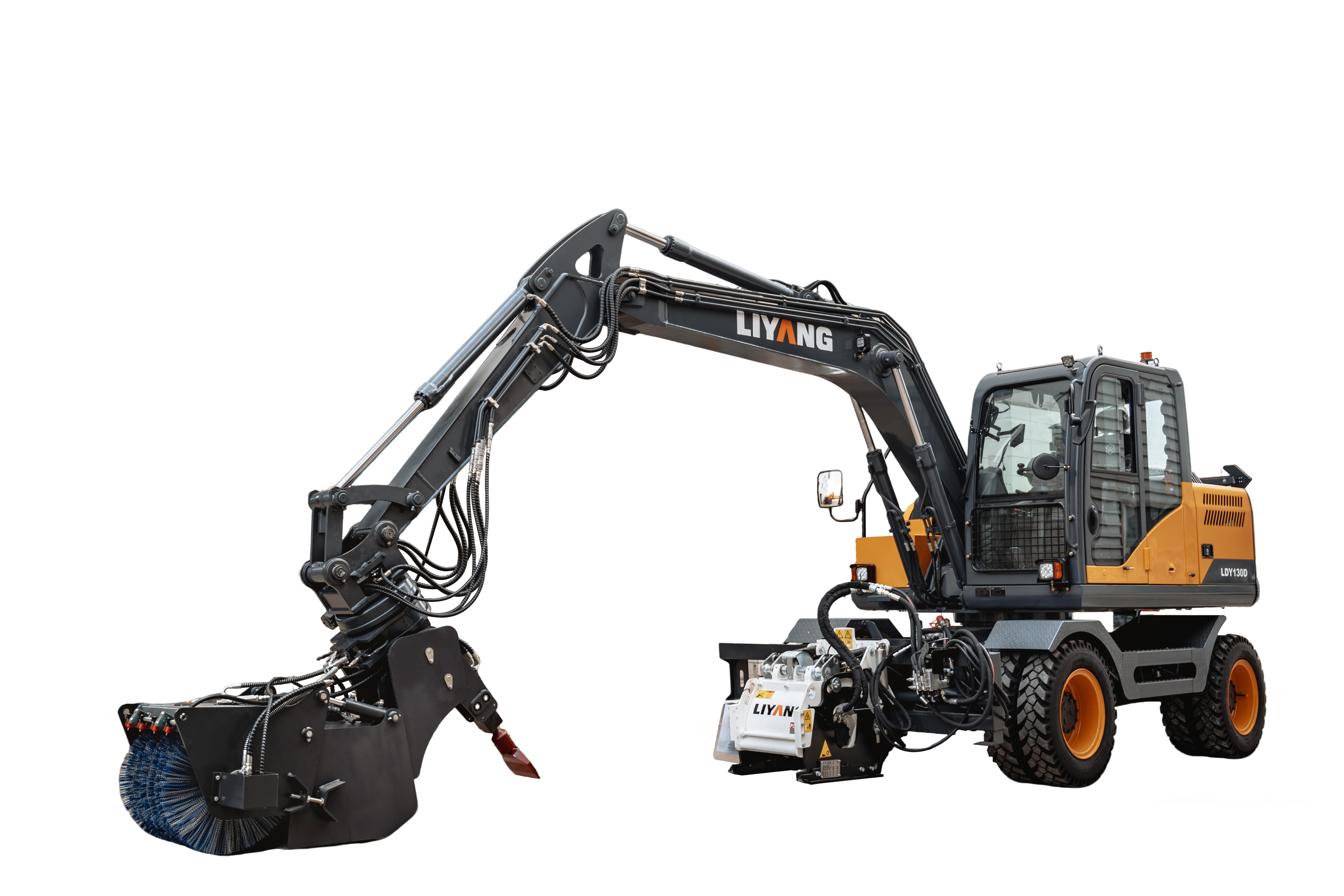

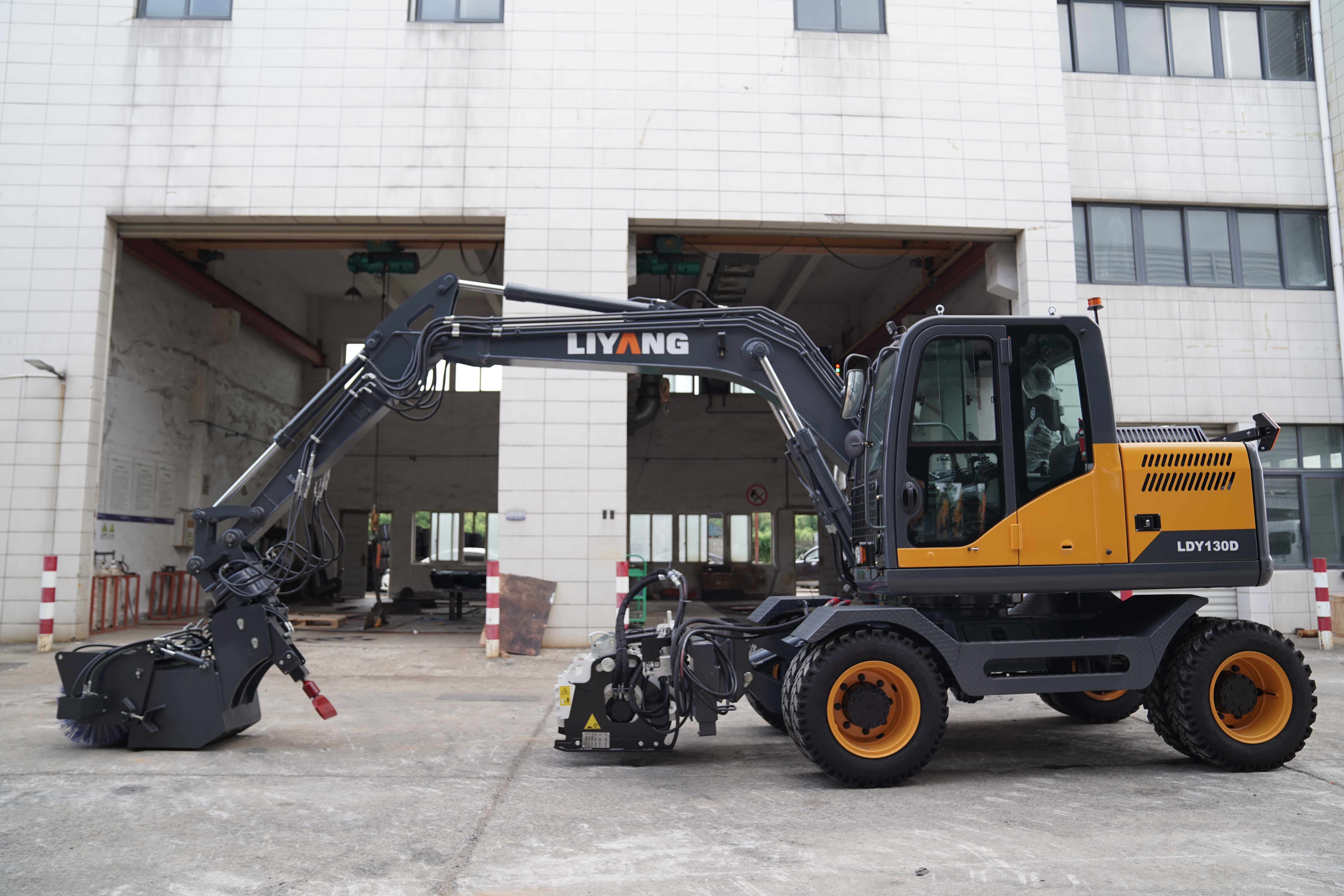

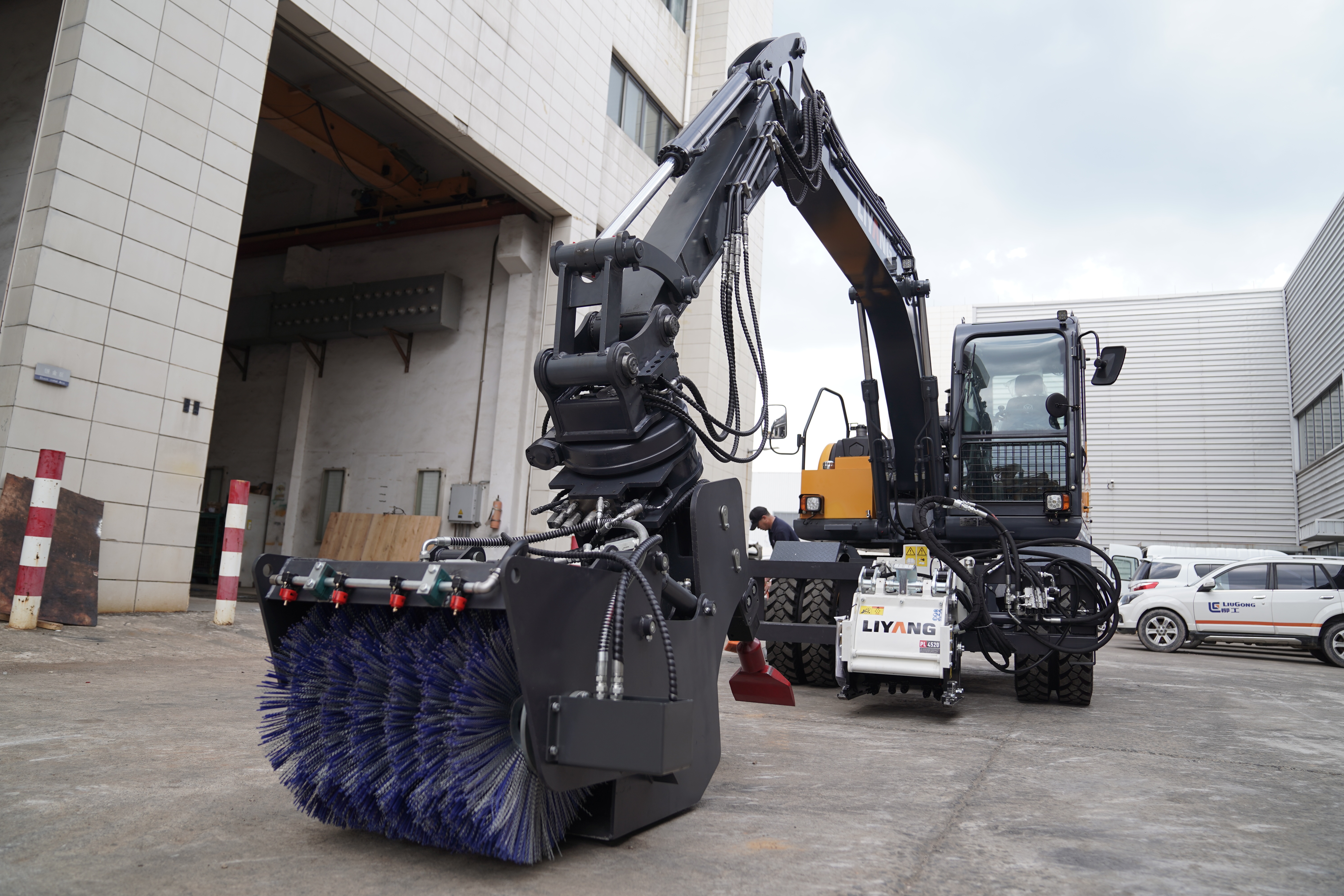

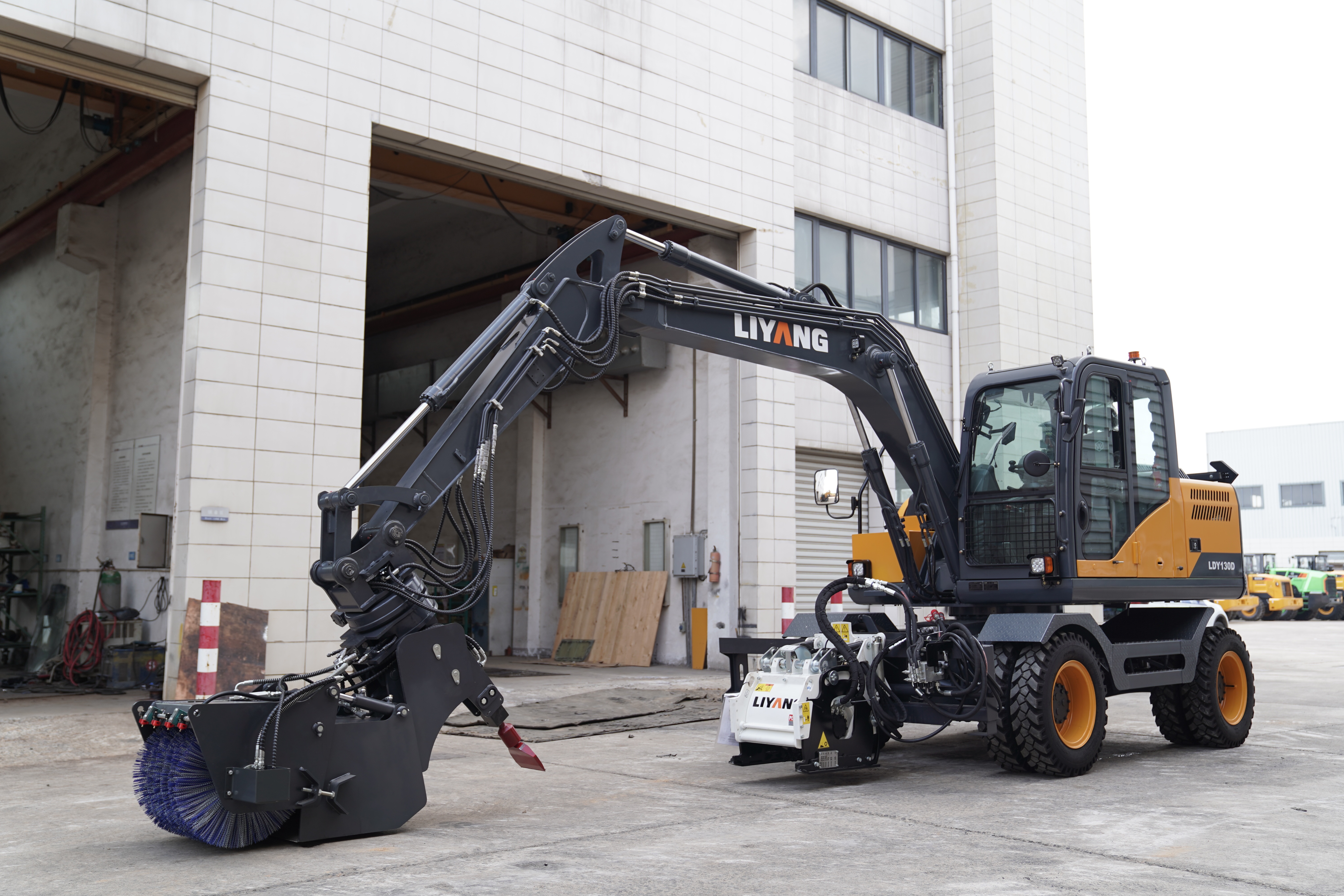

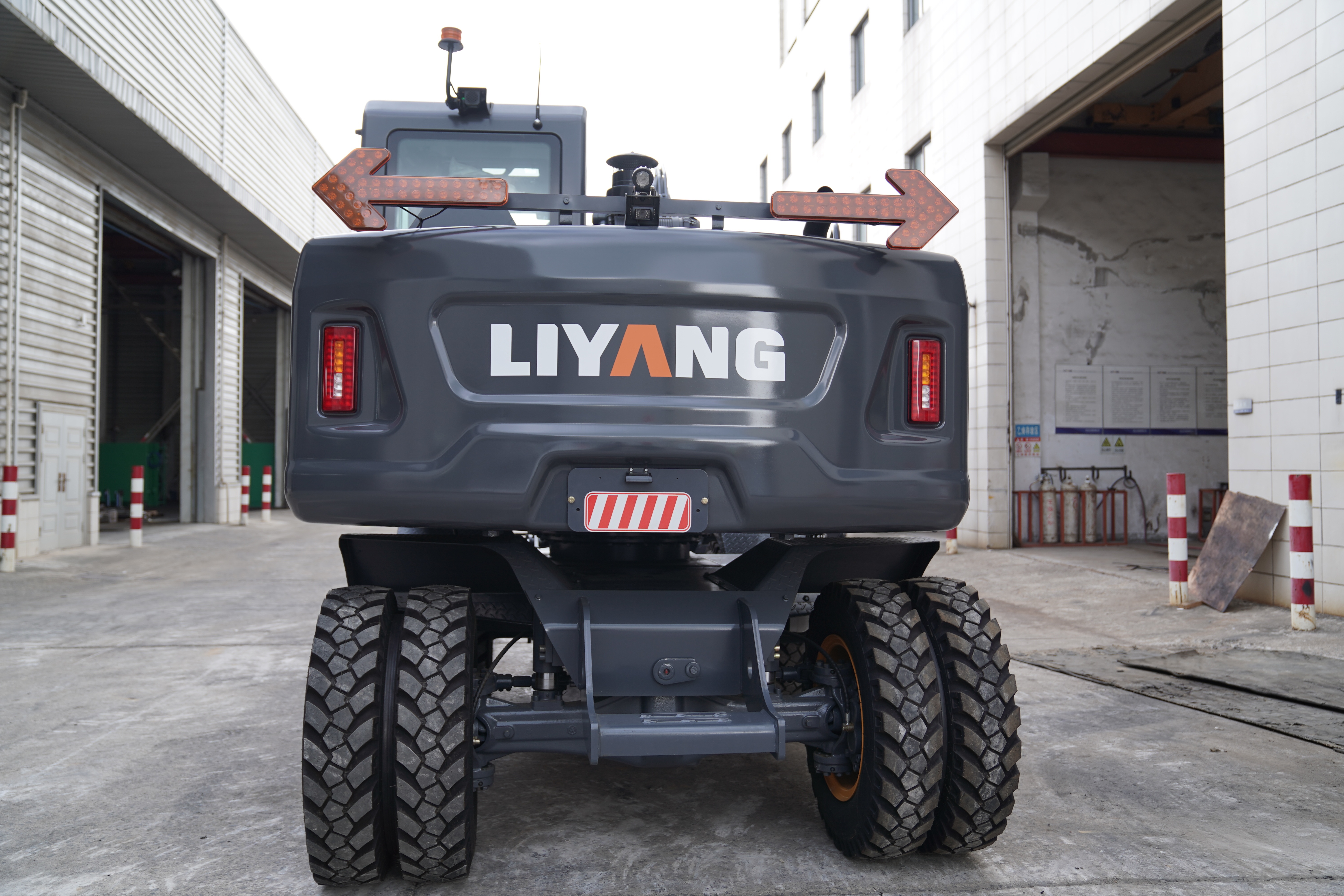

| Machine model | Unit | LDY130D |
| Performance Parameters | ||
| Operating Weight | KG | 12000-13000 |
| Shipping dimensions | L*W*H（mm) | 6750*2290*2950 |
| Power | KW | 85 |
| Maximum speed | r/min | 2200 |
| Traction | KN | 50 |
| Walking speed | Km/h | 38 |
| Engine | ||
| Brand | Yuchai | |
| Model | YCF36 | |
| Emission standard | IV | |
| Maximum torque | N.m | 522 |
| Engine speed | r/min | 1600 |
| Hydraulic system | ||
| Model | negative flow control | |
| Overflow valve pressure | ||
| Main system pressure | Mpa | 28 |
| Slewing system | Mpa | 25 |
| Walking system | Mpa | 28 |
| Milling system | Mpa | 28 |
| Cutting system | Mpa | 12 |
| Cleaning system | Mpa | 16 |
| Front-end rotation system | Mpa | 14 |
| Volume parameter | ||
| Fuel tank | L | 190 |
| Hydraulic oil tank | L | 165 |
| Total hydraulic system | L | |
| Upper frame dust removal water tank | L | 132 |
| Lower frame dust removal water tank | L | 147 |
| Working rang | ||
| Boom length | mm | 3900 |
| Arm length | mm | 2100 |
| Milling width (optional) | mm | 450 |
| Milling depth | mm | 0-150 |
| Sweeping width | mm | 600 |
| Cutting width | mm | 250 |
| Distance from the center to the tail of the milling machine (minimum milling distance requirement) | mm | 4500 |
