9017FZTS

Application:
Renovation and remodeling, road maintenance, pipe laying, community landscaping, fish pond excavation, waste disposal, foundation leveling, field preparation, ditch laying, terraced field maintenance, tree transplanting, field plowing, etc.

  • 9017FZTS
  • 9017FZTS
  • 9017FZTS
  • 9017FZTS
  • 9017FZTS
  • Description

  • Specifications

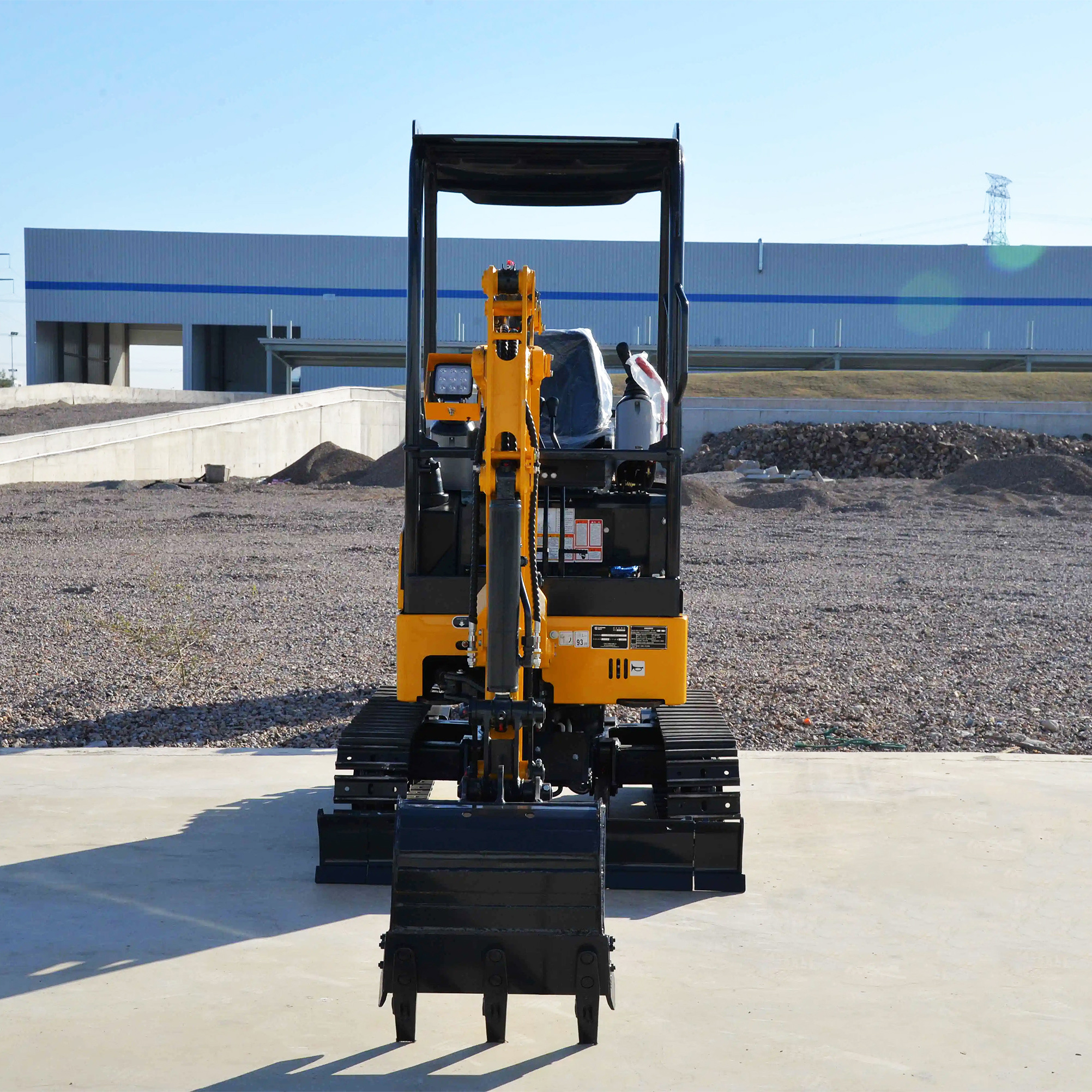

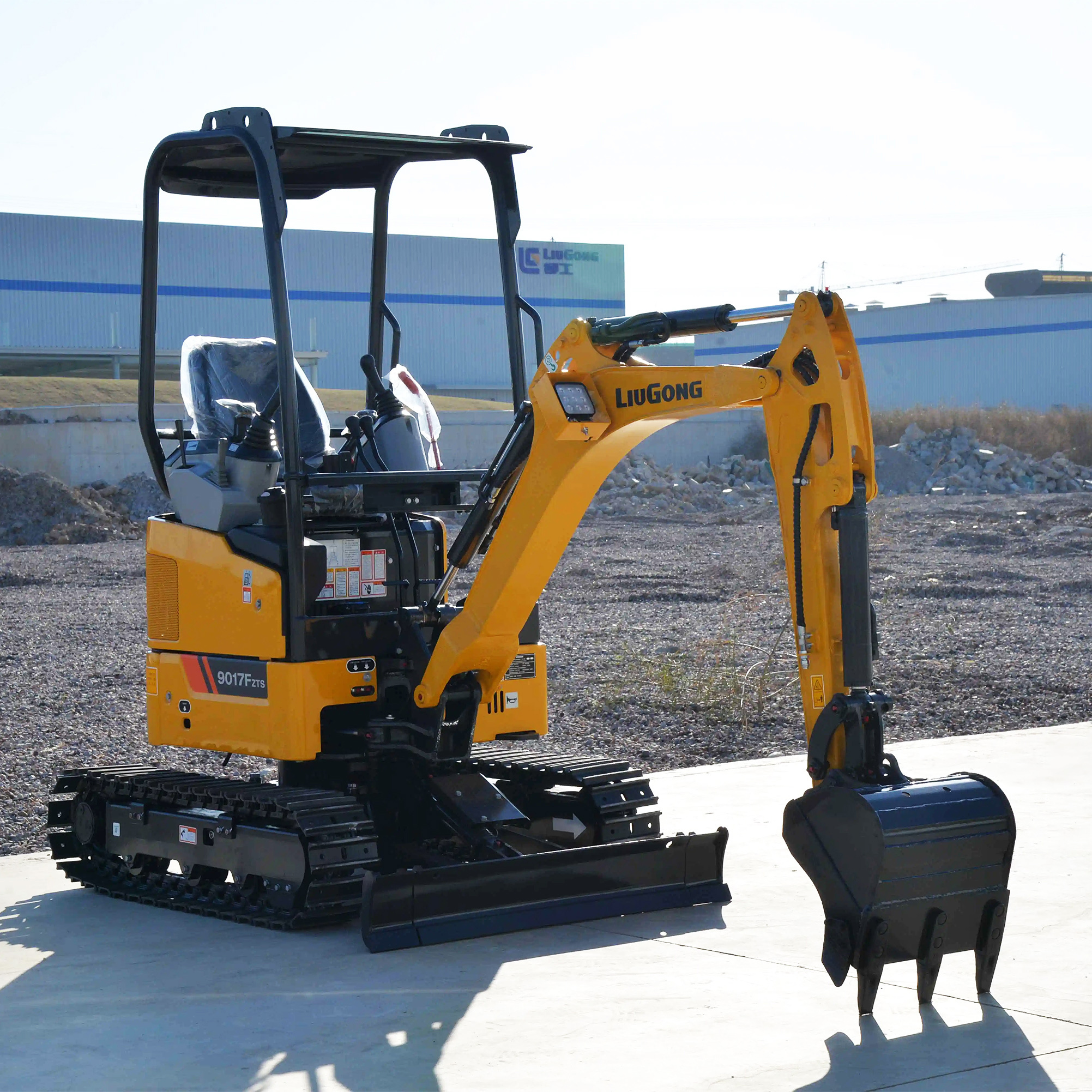

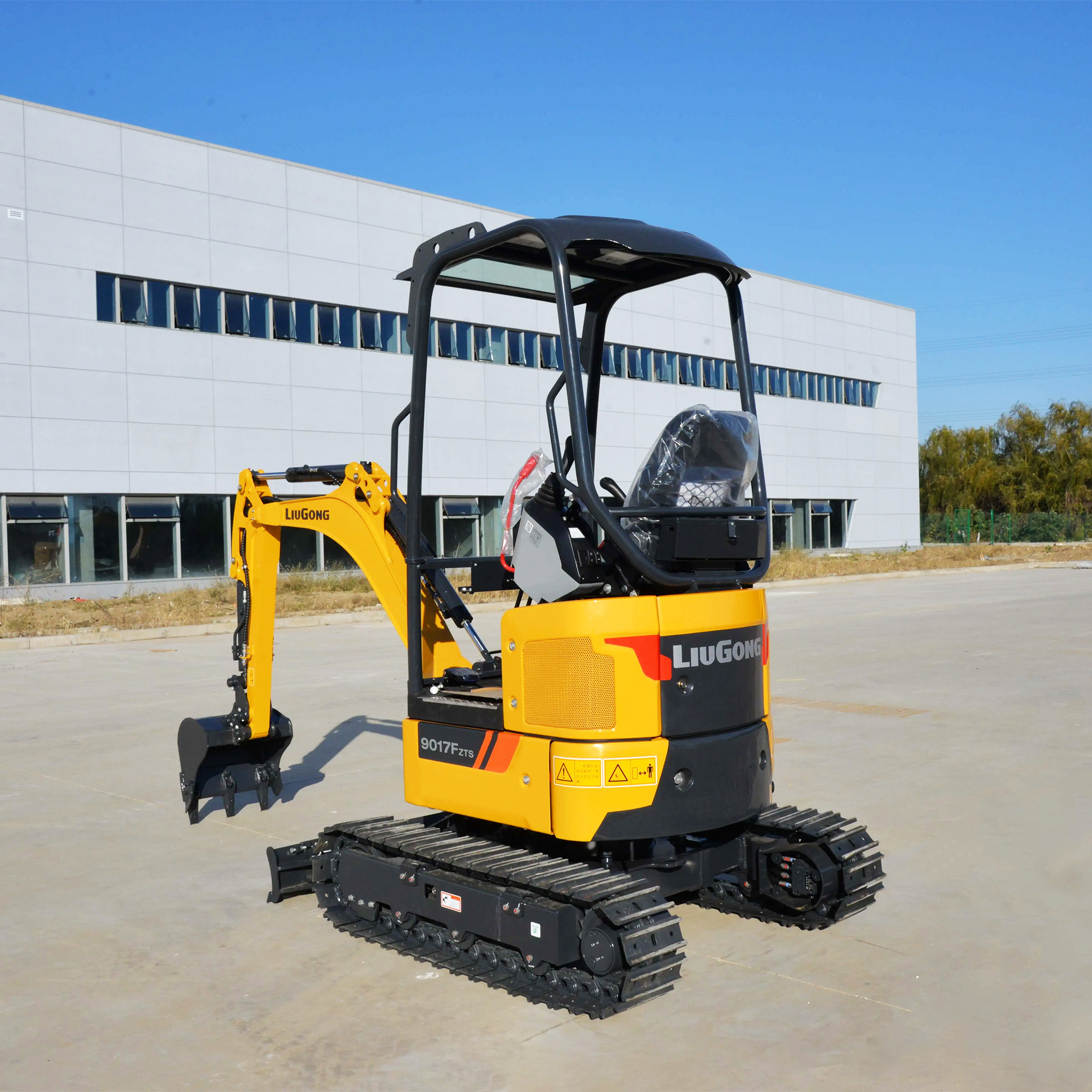

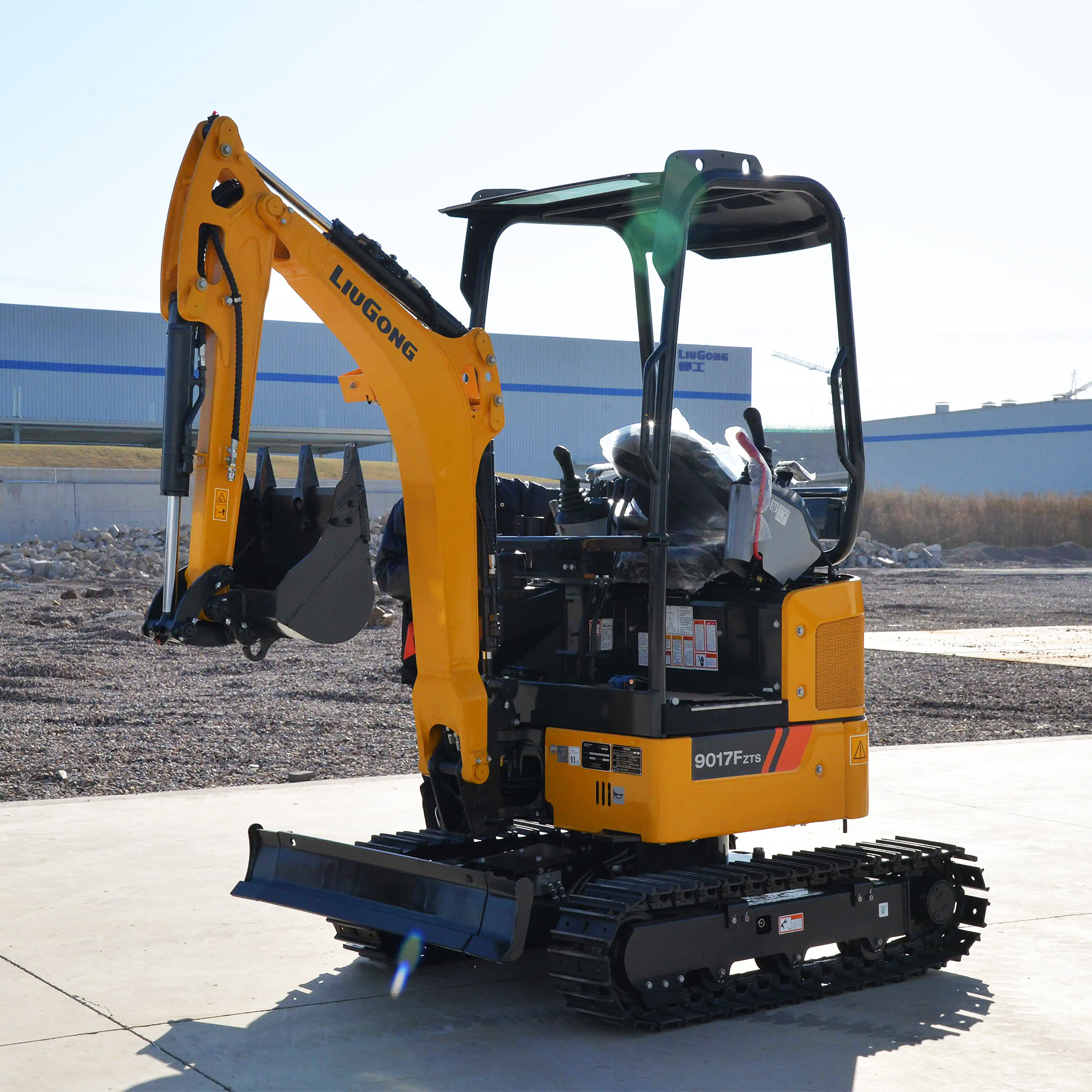

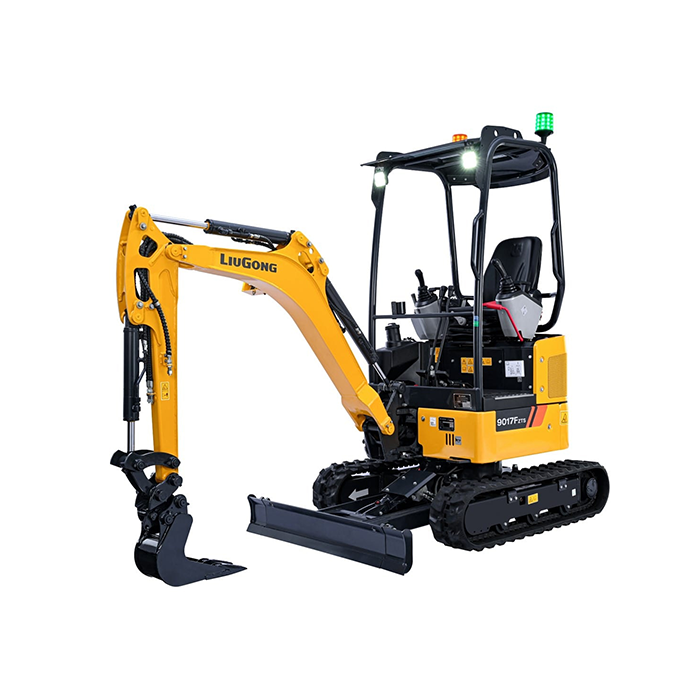

  • The 9017FZTS is a 1.8-ton zero-tail swing hydraulic excavator developed based on the LiuGong F-series platform.
  • As LiuGong's currently most popular small excavator, it features a zero-tail swing design, a fully hydraulic pilot control system, a boom that can be offset, a variable track chassis (extendable undercarriage), and a segmented, detachable open-cab.
  • It can pass through narrow passages less than 1 meter wide, making it suitable for construction in indoor spaces, narrow alleys, greenhouses, orchards, and other similar environments.
Operating Weight 1850 / 1750 kg (Steel / Rubber Tracks) Swing Speed 9.5 rpm
Rated Power 11.8 kW @ 2200 rpm Gradeability 30 °
Standard Bucket Capacity 0.045 m³ Ground Pressure 29.6 / 28.1 kPa
Engine Model Kubota D902 Arm Max. Digging Force (ISO) 9 kN
Emission Standard China Stage IV Bucket Max. Digging Force (ISO) 16 kN
Engine Type 3-cyl., In-line, 4-Stroke, Water-cooled, Indirect Inj. Transport Length 3445 mm
Max. Torque (Speed) 51.3 N·m @ 1800 rpm Overall Width (Std. Tracks) 980 / 1290 mm
Cooling System Water-cooled Transport Height 2410 mm
Travel Speed (High/Low) 4.0 / 2.2 km/h Min. Ground Clearance 150 mm
Undercarriage Length 1230 mm Max. Digging Height 3420 / 3510 mm
Undercarriage Gauge 775 / 1060 mm Max. Digging Radius 3910 / 4040 mm
Track Width (Standard) 230 mm Max. Digging Depth 2255 / 2395 mm
Max. Dumping Height 2400 / 2495 mm
