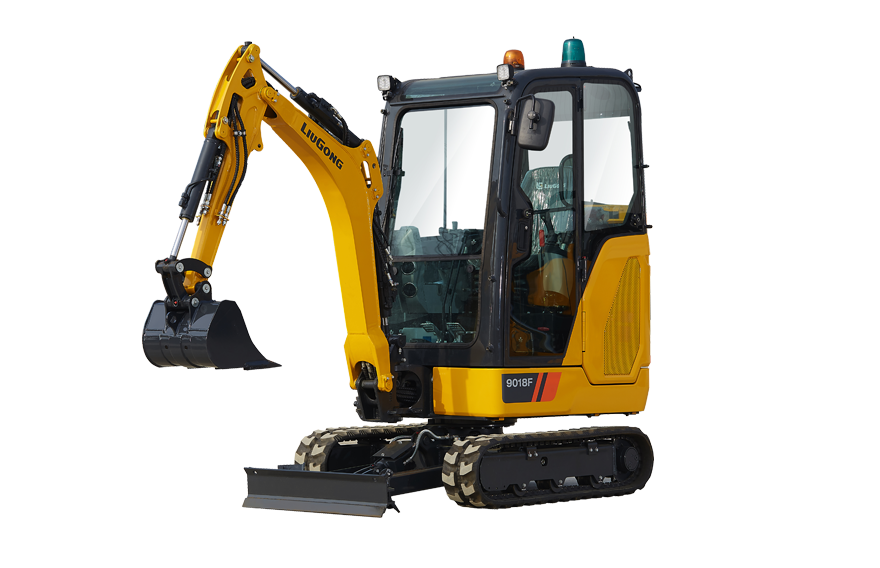

Name: 9018F
Brand: Zhejiang Liyang Machinery Co., Ltd.
Availability: InStock
Rating: 5 (1 reviews)

With high-visibility cabs, protected by ROPS & TOPS
Save more with the optional AUTO-IDLE speed function
When space is tight, the neat compact design withshort tail swing gets you to work
Control is everything. Load sensing hydraulics deliverprecise and smooth operation for excellent grading performance
Could be equipped with Air Conditioning

Operating weight with cab	1900 kg	Operating weight with canopy	1800 kg
Engine power	13.4 kW (18 hp) @ 2,200 rpm	Std. Bucket capacity	0.045 m³
Travel speed(High)	4.5 km/h	Travel speed(Low)	2.7 km/h
Maximum swing speed	9.5 rpm	Arm breakout force	9 kN
Bucket breakout force	16 kN	Shipping length	3707 mm
Shipping width	980 / 1290 mm	Shipping height	2350 mm
Track shoe width (std)	230 mm	Boom	1685 mm
Arm	1070 mm	Digging reach	3910 mm
Digging reach on ground	3850 mm	Digging depth	2290 mm
Vertical wall digging depth	1820 mm	Cutting height	3385 mm
Dumping height	2370 mm	Minimum front swing radius	1660 mm
Dozer-up	240 mm	Dozer-down	240 mm
Swing boom left rotation	72°	Swing boom right rotation	58°
Model	Yanmar 3TNV80F-SSLY	Emission	EU Stage V / Tier 4f
System maximum flow	55 L/min (14.5 gal/min)	System pressure	21 MPa
