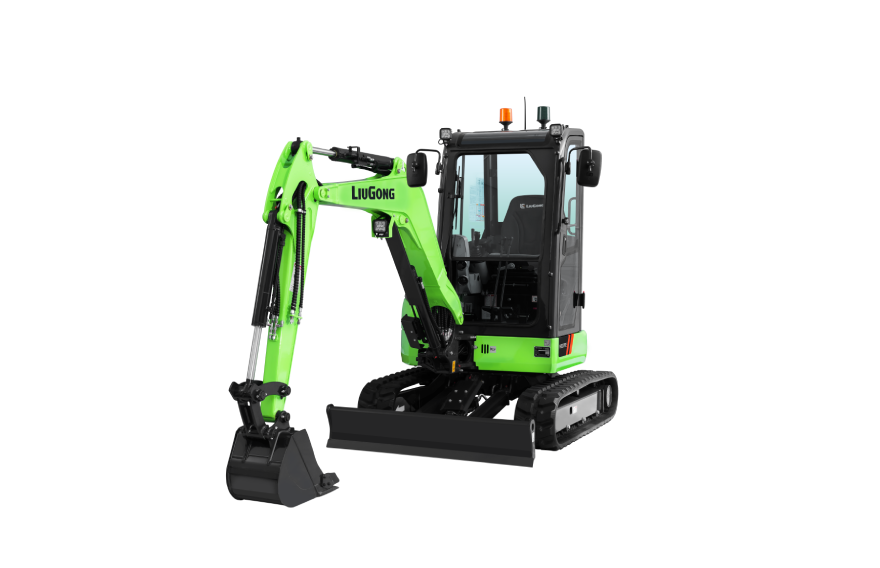

9027FE

Application:
Agriculture, Demolition, Forestry, General Construction, Municipal Engineering, Oil&Gas, Road Construction, Utilities.

  • 9027FE
  • 9027FE
  • Description

  • Specifications

  • High-efficiency high-torque reluctance motor matchesthe low-speed working conditions of the excavator,and combined with the new load-sensitive hydraulicsystem, the efficiency is improved even more.
  • Large-capacity lithium iron phosphate battery, longercycle life and better safety performance. Cobalt-free,more environmentally friendly.
  • True zero-tail body design, the operator does nothave to worry about the obstacles at the back of themachine, easier to operate and more efficient, withthe deflectable rotating arm, left 74°, right 55°, caneasily realize the operation in the narrow andrestricted space such as the corner of the wall.
  • New 5-inch touch screen, integrated control panel,equipped with one-key start and automatic stopfunction.
  • Two charging modes, support household 110V-~230VAC charging / industrial 380V DC charging (need tomatch the charger), to meet the charging needs indifferent situations.
Operating Weight 2,750 kg Rated Storage Capacity 20.6 kWh
Rated Power 16.5 kW Standard Bucket Capacity 0.08 m³
Arm Digging Force 12 kN Bucket Digging Force 20 kN
Drawbar Pull 21.1 kN Max. Digging Reach 4,757 mm
Max. Dumping Height 3,067 mm Shipping Dimension L*W*H 4160*1550*1550 mm
