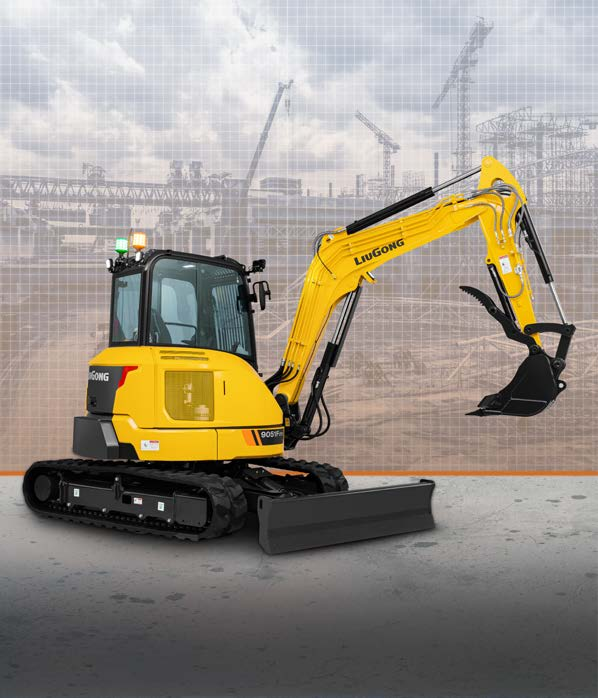

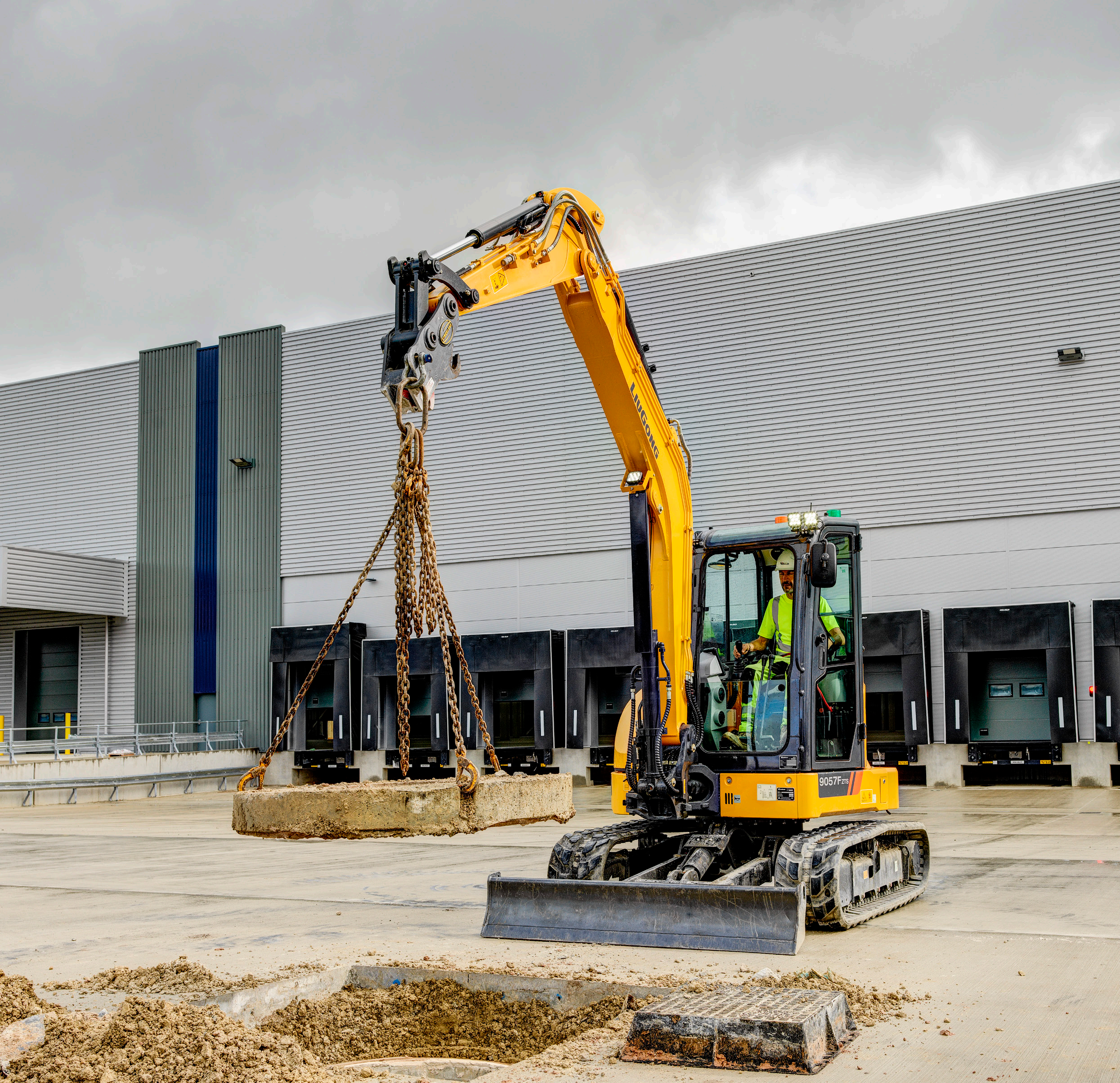

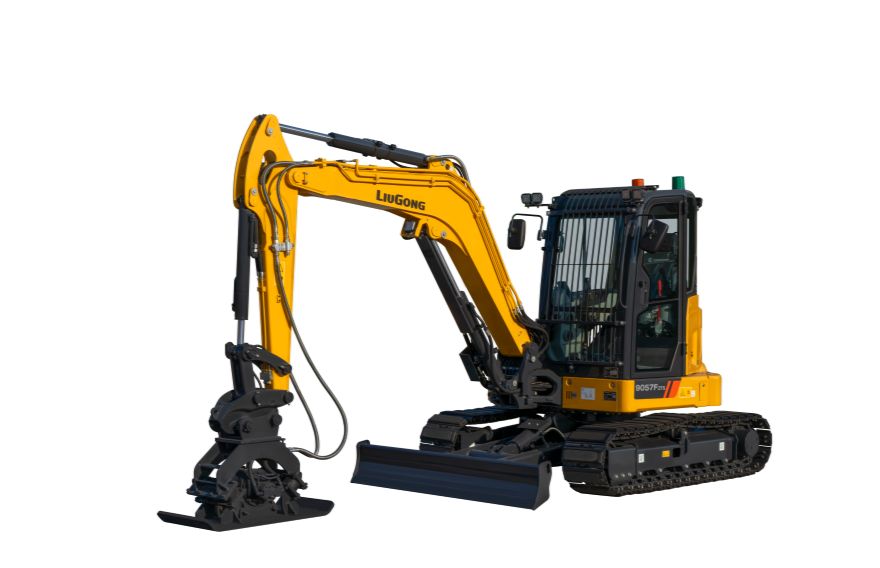

9057FZTS

Application:
Agriculture, Demolition, Forestry, General Construction, Municipal Engineering, Oil &Gas, Road Construction, Utilities.

  • 9057FZTS
  • 9057FZTS
  • 9057FZTS
  • Description

  • Specifications

  • With zero tail swing (ZTS), our 5T range can work inconfined spaces. This design significantly reduces thelikelihood of collisions making for a safer workingenvironment.
  • From the ergonomically positioned non-slip pedals tothe multi-functional joysticks, the cabin teriorrepresents a masterclass in design.
  • When dozer float is activated, the dozer blade willautomatically follow the contours of the ground. Thisfunctionality enables operators to perform finegrading and clean-up activities with maximum easeand control.
Operating Weight 5,570 kg Rated Power 35.5 kW @ 2,200 rpm
Standard Bucket Capacity 0.16 m³ Bucket Capacity 0.06-0.26 m³
Travel Speed (High/Low) 4.2/2.4 km/h Swing Speed 9.6 r/min
Bucket Digging Force (ISO) 44 kN Arm Digging Force (ISO) 27 kN
Shipping Length 5,650 mm Shipping Width 1,960 mm
Shipping Height 2,550 mm Shoe Width 400 mm
Max. Digging Reach 6,105 mm Max. Digging Reach on Ground 6,040 mm
Max. Digging Depth 3,630 mm Max. Vertical Wall Digging Depth 2,800 mm
Max. Cutting Height 5,571 mm Max. Dumping Height 4,000 mm
Min. Front Swing Radius 2,558 mm Engine Yanmar 4TNV86CT-PLY
Emission Regulation Stage V / Tier 4F Main Pumps Total Flow 149.6 L/min
Relief Pressure, main 27.4 MPa
