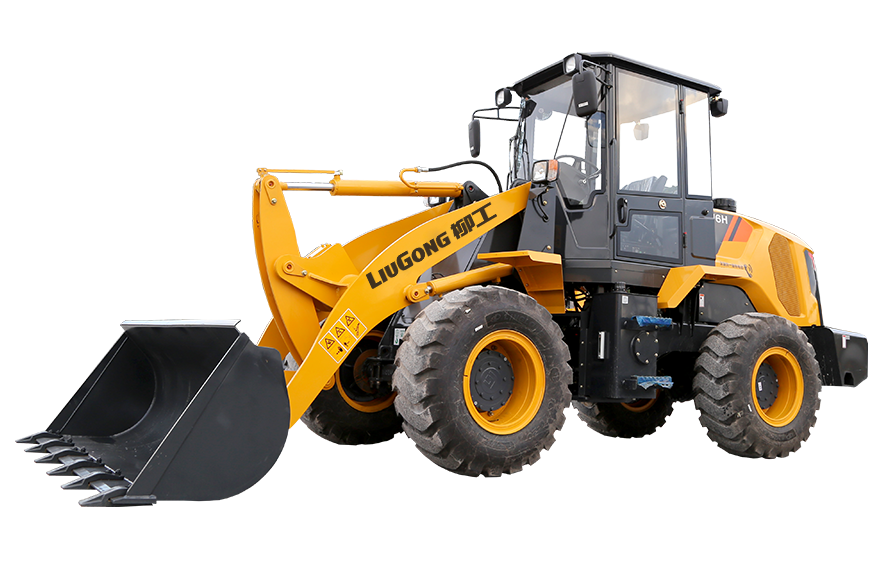

Name: 816H
Brand: Zhejiang Liyang Machinery Co., Ltd.
Availability: InStock
Rating: 5 (1 reviews)

Highly maneuverable, suitable for operating in tightspaces.
Oscillating rear axle keeps four-wheel drive engagedfor superior off-road mobility.
Ground-level servicing: engine, fan, radiator andhydraulic hoses can be serviced from ground level.
High job site versatility, multiple attachments available.

Operating weight	51,800 kg	Standard bucket	1 m³
Rated power	65 kW (87 hp / 88 ps) @ 2,400 rpm	Maximum gross power	65 kW (87 hp / 88 ps) @ 2,400 rpm
Rated load capacity	1,600 kg	Hydraulic cycle time	8.6 s
Raise time	4.6 s	Maximum travel speed	21 km/h
Tipping load-full turn	3,300 kg	Bucket breakout force	55 kN
Dump clearance, full height discharge	2,600 mm	Dump reach, full height discharge	1,090 mm
Model	YN38GBZ1	Emissions	EPA Tier 2 / EU Stage II
Aspiration	Naturally aspirated	Length with bucket down	5,825 mm
Width over tires	1,980 mm	Cab height	2,900 mm
Turning radius, outside of tire	4,550 mm	Bucket capacity	0.7-1.5 m³
General Purpose bucket	1 m³	Light material bucket	/
Rock bucket	/
