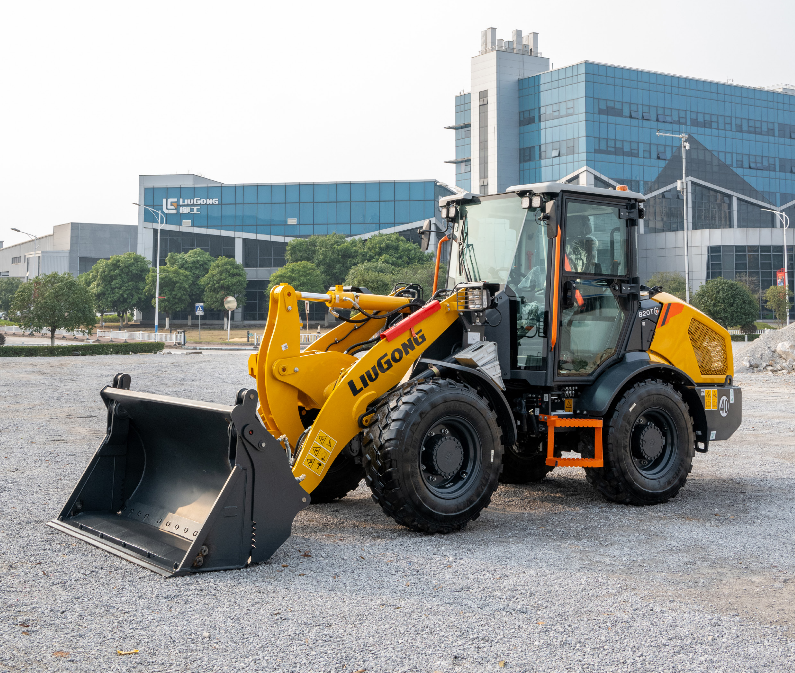

820T

Application:
Agriculture, General Construction, Municipal Engineering, Road Construction.
  • 820T
  • 820T
  • Description

  • Specifications

  • Customized engine is perfectly matched powertrain for highefficiency and low fuel consumption.
  • Newly-designed bucket enhances material retention andimproves productivity.
  • Programmable hydraulic control suitable for differentapplications and operating styles.
  • The new cab of T-series, incorporating enlarged driving space,increased legroom and wider front visibility, offers the operator acomfortable and safe driving experience.
  • Ground-level servicing for easy service and reduced downtime.Quick coupler is compatible with various attachments. Constanthydraulic flow is available for applications like sweeping, snowremoval etc.
Operating Weight
6,800 kg
Standard Bucket Size
1.2 m³
Gross Power
53.7 kW (72 hp / 73 ps) @ 2,000 rpm
Net Power
48.9 kW (65 hp / 66 ps) @ 2,000 rpm
Hydraulic Cycle Time
10 s
Raise Time
5.4 s
Maximum Travel Speed, fwd
40 km/h
Tipping Load - Full Turn
3,680 kg
Bucket Breakout Force
66 kN
Dump Clearance at Full Height Discharge
2,615 mm
Dump Reach at Full Height Discharge
875 mm
Model
YANMAR 4TNV98CT
Emission Regulation
EU Stage V
Aspiration
Turbocharged & Charge air cooling
Length with Bucket Down
5,833 mm
Width over Tires
1,930 mm
Cab Height
2,520 mm
Turning Radius, Outside of Tire
3,750 mm
Bucket Capacities
0.8-2.0 m³
General Purpose
1.2 m³
Light Material
/
Heavy Rock
/
