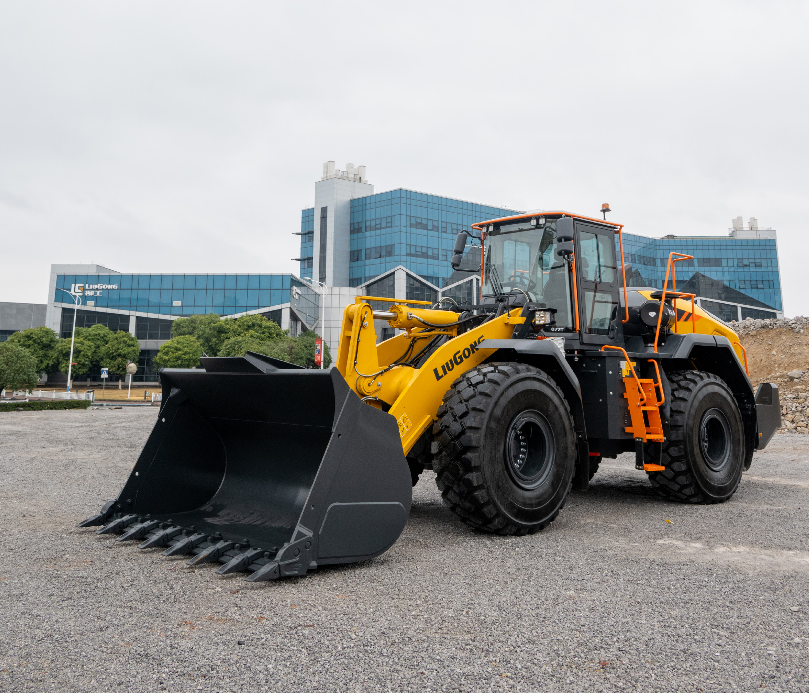

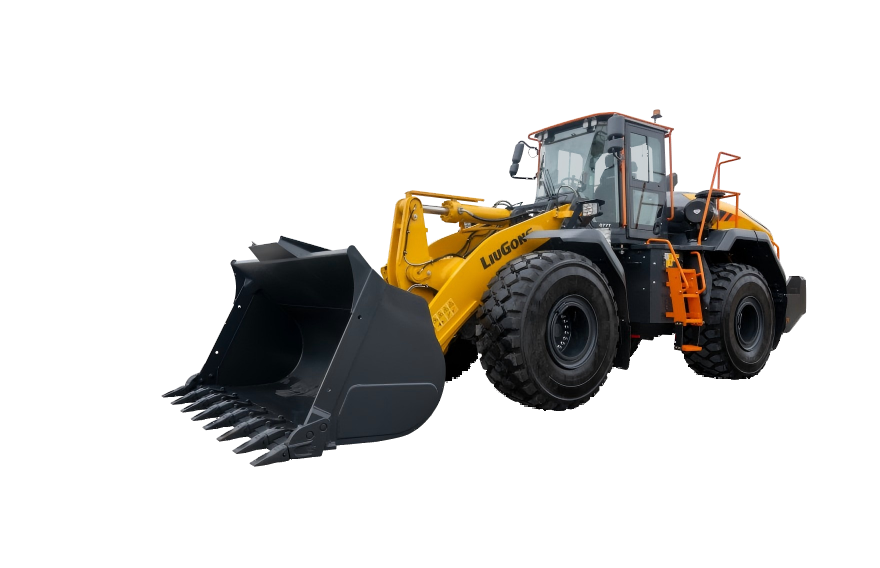

877T

Application:
Demolition, General Construction, Ports, Quarry and Aggregates, Utilities.
  • 877T
  • 877T
  • Description

  • Specifications

  • Customized engine is perfectly matched power-train forhigh efficiency and low fuel consumption, bringing betterTCO.
  • Programmable hydraulic control suitable for differentapplications and operating styles.
  • Robust frame, wear-resistant bucket and dependablecomponents make the machine work for longer.
  • Graphic display integrated multiple functions andparameter settings facilitates the machine to cope withvarious applications.
  • The new cab of T-series, incorporating enlarged drivingspace, increased legroom and wider front visibility, featuringwith electric heating air suspension and ventilation seat,offers the operator a comfortable and safe drivingexperience.
  • Wider component access and handy arrangement ofroutine service points for easv maintenance.
Operating Weight 26,275 kg Standard Bucket Size 4.7 m³
Gross Power 223 kW (299 hp / 303 ps) @ 1,700 rpm Hydraulic Cycle Time 10.6 s
Raise Time 5.8 s Maximum Travel Speed, fwd 40 km/h
Tipping Load-Full Turn 17,200 kg Bucket Breakout Force 206 kN
Dump Clearance at Full Height Discharge 3,319 mm Dump Reach at Full Height Discharge 1,237 mm
Model Cummins L9 Emissions EU Stage V
Aspiration Turbocharged & Air-to-air intercooled Length with Bucket Down 9,671 mm
Width over Tires 2,970 mm Cab Height 3,660 mm
Turning Radius, Outside of Tire 6,981 mm Bucket Capacities 3.5-7.0 m³
General Purpose 4.7 m³ Light Material /
Heavy Rock /
