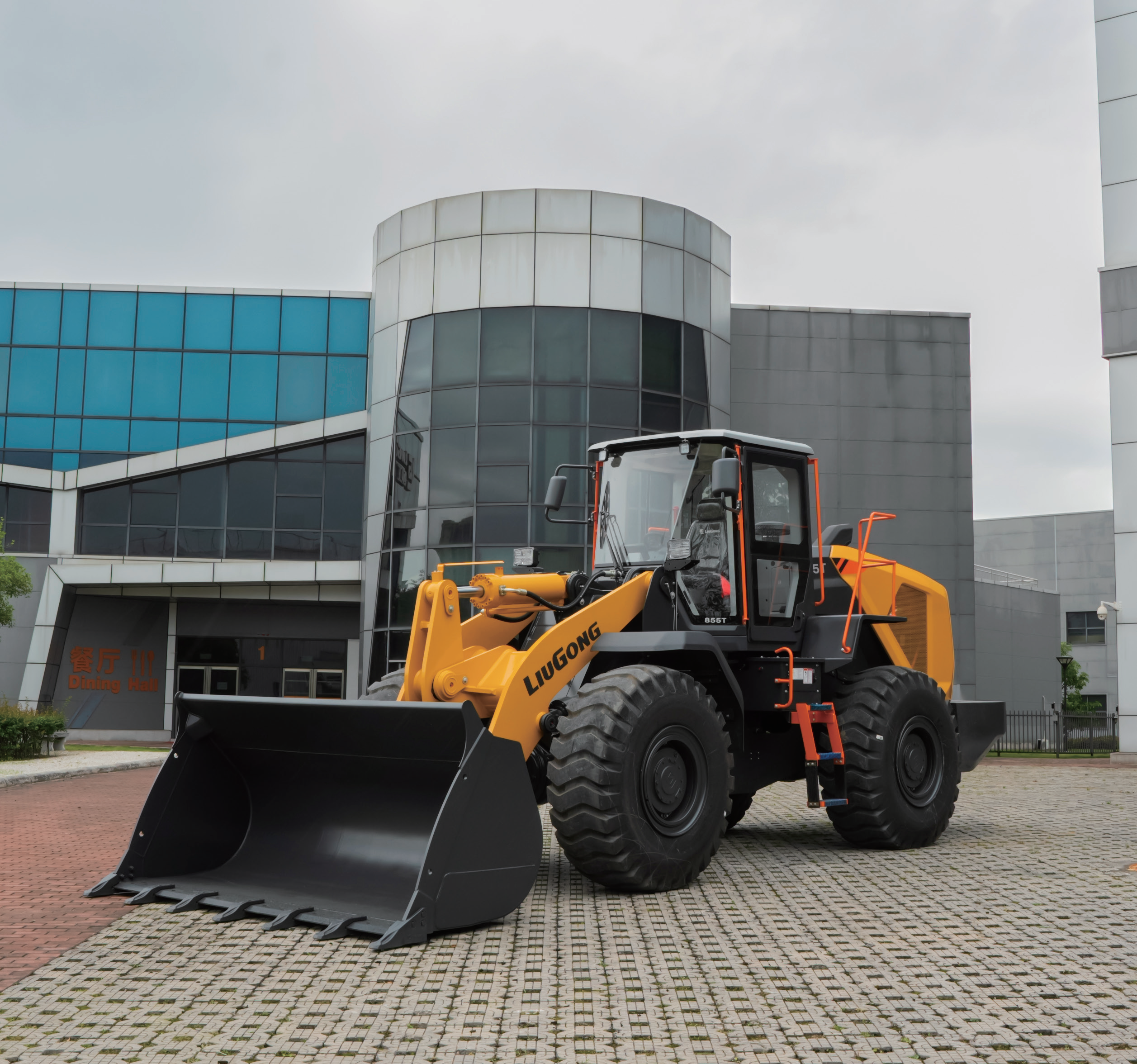

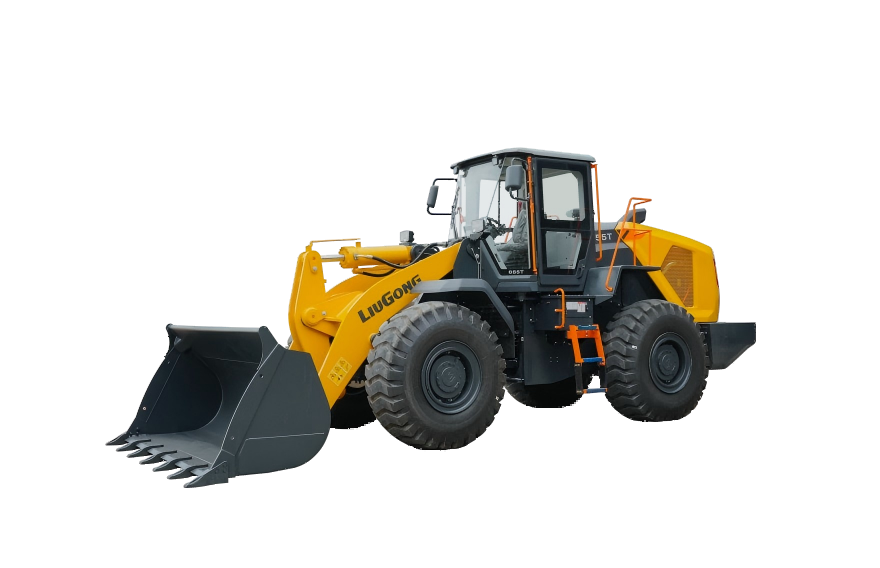

855T

Application:
Demolition, General Construction, Ports, Quarry and Aggregates, Utilities.
  • 855T
  • 855T
  • Description

  • Specifications

  • Equipped with a mature and reliableCummins engine, it boasts high reliability,powerful performance, and low fuel consumption.
  • Equipped with a LiuGong heavy-duty driveaxle, offering stronger load-bearing capacity andhigher reliability.
  • The structural components have beenoptimized, with stronger working devices,structural parts, and hinges, improving the safetyfactor of the structural components andenhancing their load-bearing capacity.
Operating weight 16,500 kg Standard bucket 3.3 m³
Rated power 170 kW (228 hp / 231 ps) @ 2,000 rpm Hydraulic cycle time 9.4 s
Raise time 5 s Maximum Travel Speed, fwd 40 km/h
Tipping load-full turn 11,000 kg Bucket breakout force 175 kN
Dump clearance, full height discharge 3,050 mm Dump reach, full height discharge 1,218 mm
Model Cummins L9 Emissions EPA Tier 3 / EU Stage III
Aspiration Turbocharged & Air-to-air intercooled Length with bucket down 8,360 mm
Width over tires 2,750 mm Cab height 3,400 mm
Turning radius, outside of tire 6,270 mm Bucket capacity 2.7 - 5.6 m³
General purpose 3.3 m³ Light material /
Heavy-rock /
