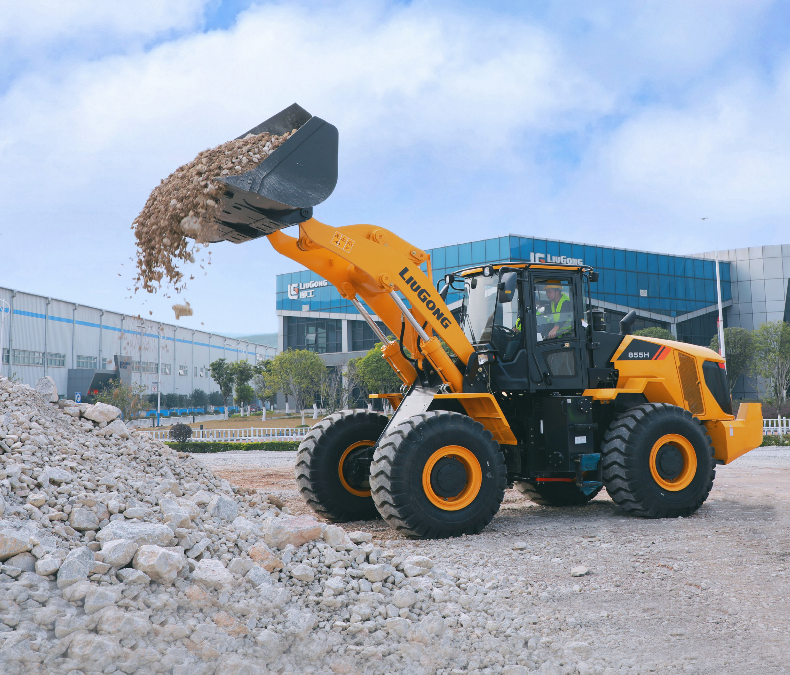

855H

Application:
General Construction, Utilities.
  • 855H
  • 855H
  • Description

  • Specifications

  • The engine is perfectly matched to the transmissionchain and hydraulic system, for more efficiency andless wastage.
  • The hydraulic system has a dual-pump confluencewith steering always in priority, reducing energy loss.
  • 309° panoramic visibility gives the operator a verycomfortable work environment in the cab. Fully-sealing and micro-pressuring system ensures the cabis clean and quiet.
  • Single layer radiator and big range fin spacing forhigh efficiency and easy maintenance.
Operating weight
16,500 kg
Standard bucket
3.0 m³
Rated power
162 kW (217 hp / 220 ps) @ 2,000 rpm
Maximum gross power
162 kW (217 hp / 220 ps) @ 2,000 rpm
Rated load capacity
5,000 kg
Hydraulic cycle time
10.3 s
Tipping load-full turn
11,100 kg
Bucket breakout force
165 kN
Dump clearance, full height discharge
3,037 mm
Dump reach, full height discharge
1,168 mm
Model
Cummins 6LT9.3
Emissions
EPA Tier 2 / EU Stage II
Aspiration
Turbocharged & air-to-air intercooled
Length with bucket down
8,066 mm
Width over tires
2,750 mm
Cab height
3,500 mm
Turning radius, outside of tire
6,086 mm
Bucket capacity
2.7-4.0 m³
General purpose bucket
3.0 m³
Light material bucket
5.6, 6.0 m³
Rock bucket
2.5, 2.7, 3.0 m³
