Application:
General Construction, Utilities.

  • 906E
  • Description

  • Specifications

  • Equipped with Yanmar engine that meets EUlIlemissions, it has strong power, and the industry 'ssame tonnage industry provides large power outputand flow, on the basis of ensuring high efficiency, italso has higher reliability and durability.
  • The new main pump displacement is supplied to thesystem on demand, the standby is automaticallyreduced, and the work is provided on demand,reducing energy consumption and energy saving.
  • Air filter, oil filter, diesel filter, antifreeze, lubricationpoint and other main maintenance points arecentralized layout, realizing convenient one-stopmaintenance and inspection.

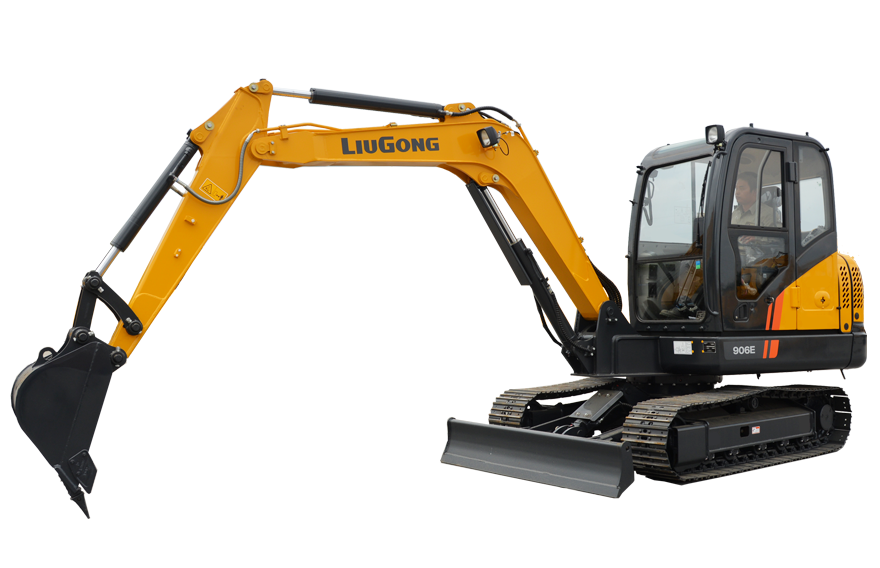

  • Machine Model:CLG906E
    Engine Brand:YANMAR
    Engine Model: 4TNV94L-BVLYO
    Engine GrossPower: 36.2kW @2100 rpm
    Engine Net Power:34.6KW@2100rpm
    Peak Torque: 212.7 Nm@1260rpm
  • Swing Motor.KYB Model MSG-27P-23E-27K.
  • Specifications and designs are subject to changewithout notice.
Operating weight 5900 kg Engine power 36.2 kW (48.5 hp) @ 2100 rpm
Std. Bucket capacity 0.21 m³ Travel speed(High) 4.1 km/h
Travel speed(Low) 2.5 km/h Maximum swing speed 10.4 rpm
Arm breakout force 31 kN Bucket breakout force 41 kN
Shipping length 5750 mm Shipping width 1900 mm
Shipping height 2600 mm Track shoe width (std) 400 mm
Boom 3000 mm Arm 1600 mm
Digging reach 6205 mm Digging reach on ground 6065 mm
Digging depth 3875 mm Vertical wall digging depth 2940 mm
Cutting height 5790 mm Dumping height 4135 mm
Minimum front swing radius 2430 mm Dozer-up 360 mm
Dozer-down 405 mm Model Yanmar 4TNV94L-BVLYC
Emission EU Stage III System maximum flow 142.8 L/min (37.7 gal/min)
System pressure 25 MPa
